Installation - 3.2L SRT

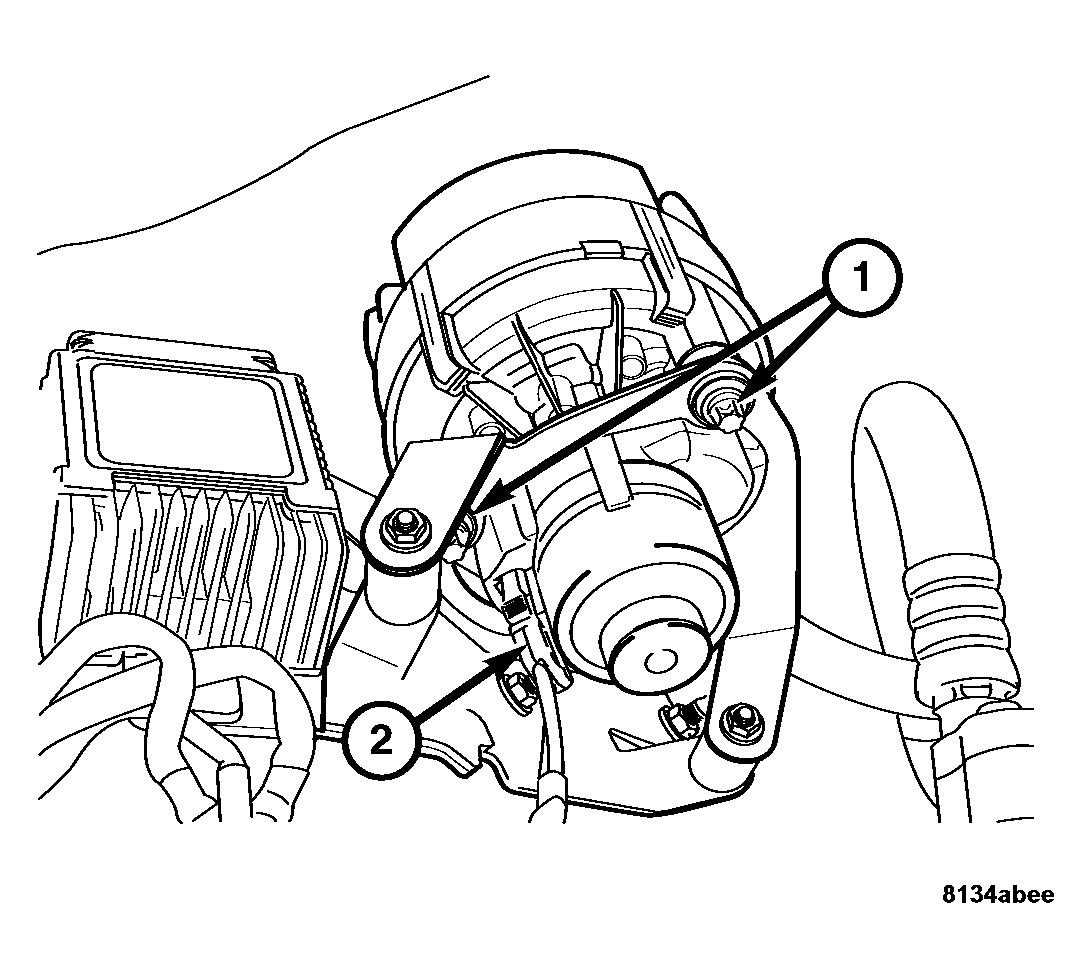

Fig 1: Locating Retaining Nuts & Harness Connector (3.2L SRT)
GC0033624Courtesy of DAIMLERCHRYSLER CORP.
  1. Install air pump to the air pump mounting bracket.
  2. Install the air pump retaining nuts (1). Tighten nuts to 7 N.m (62 in. lbs.).
  3. Connect the air pump harness connector (2).

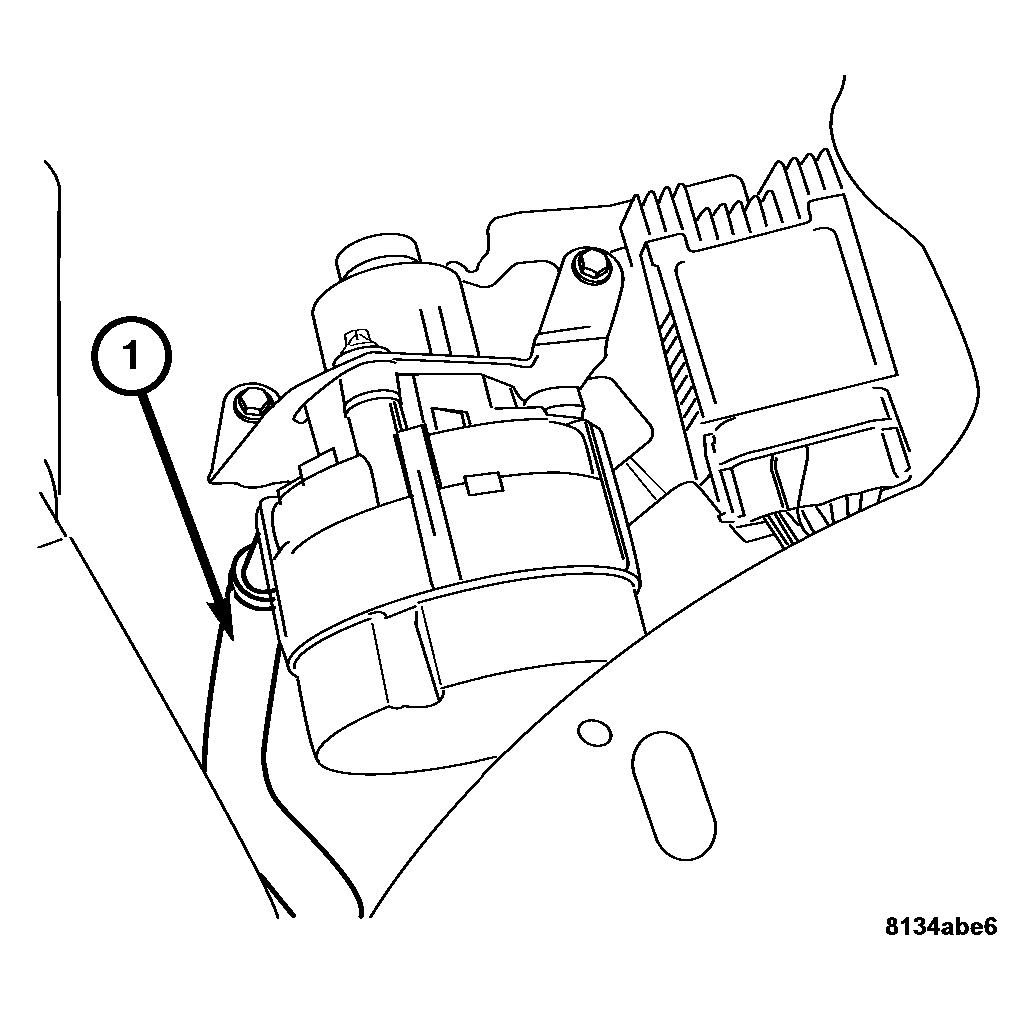

    Fig 2: Locating Air Pump Tube Assembly (3.2L SRT)
    GC0033623Courtesy of DAIMLERCHRYSLER CORP.
  4. Connect the air pump tube assembly (1) to the air pump.
  5. Connect the negative battery cable.
