Switchover Valve: Installation

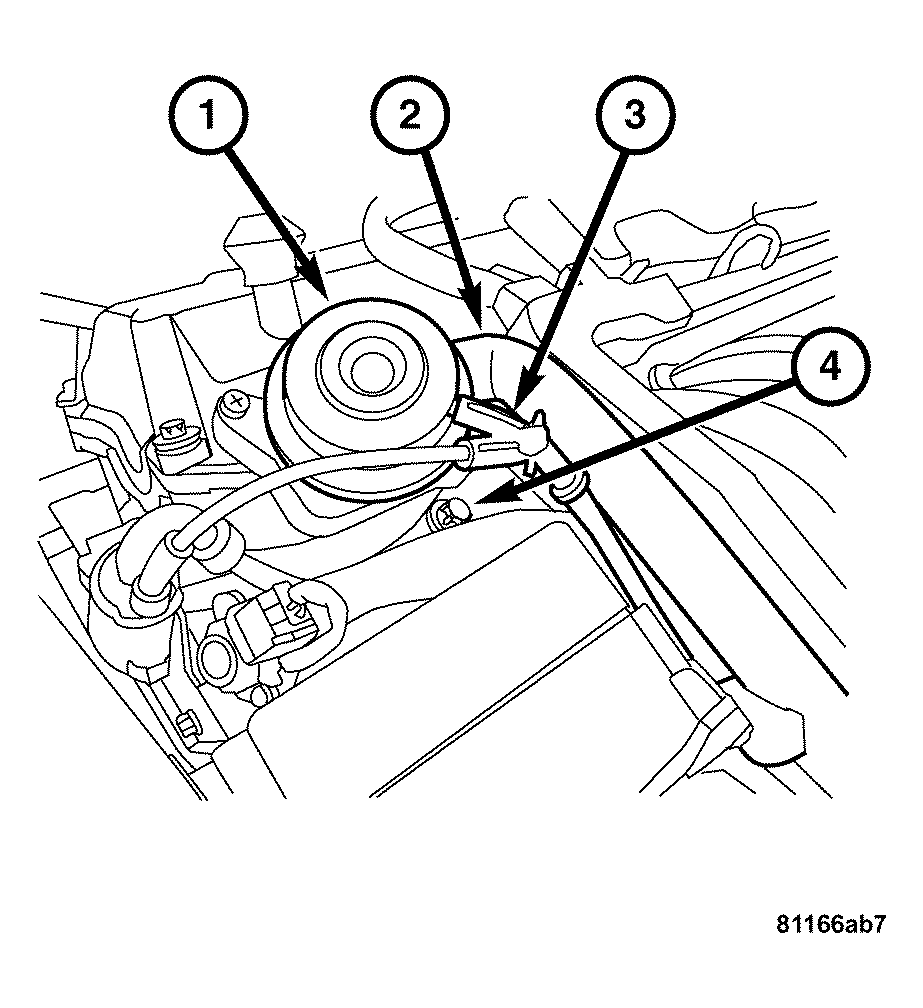

Fig 1: Removing/Installing Switchover Valve
GC0033627Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the new gasket between intake manifold and air pump switchover valve (1).
  2. Install the retaining bolt (4). Tighten bolt to 20 N.m (177 in. lbs.).
  3. Connect the vacuum line (3).
  4. Connect the air pump switchover tube (2).
  5. Install the air cleaner housing.
  6. Connect the negative battery cable.
