Exhaust Gas RECIRCULATION Tube: Installation

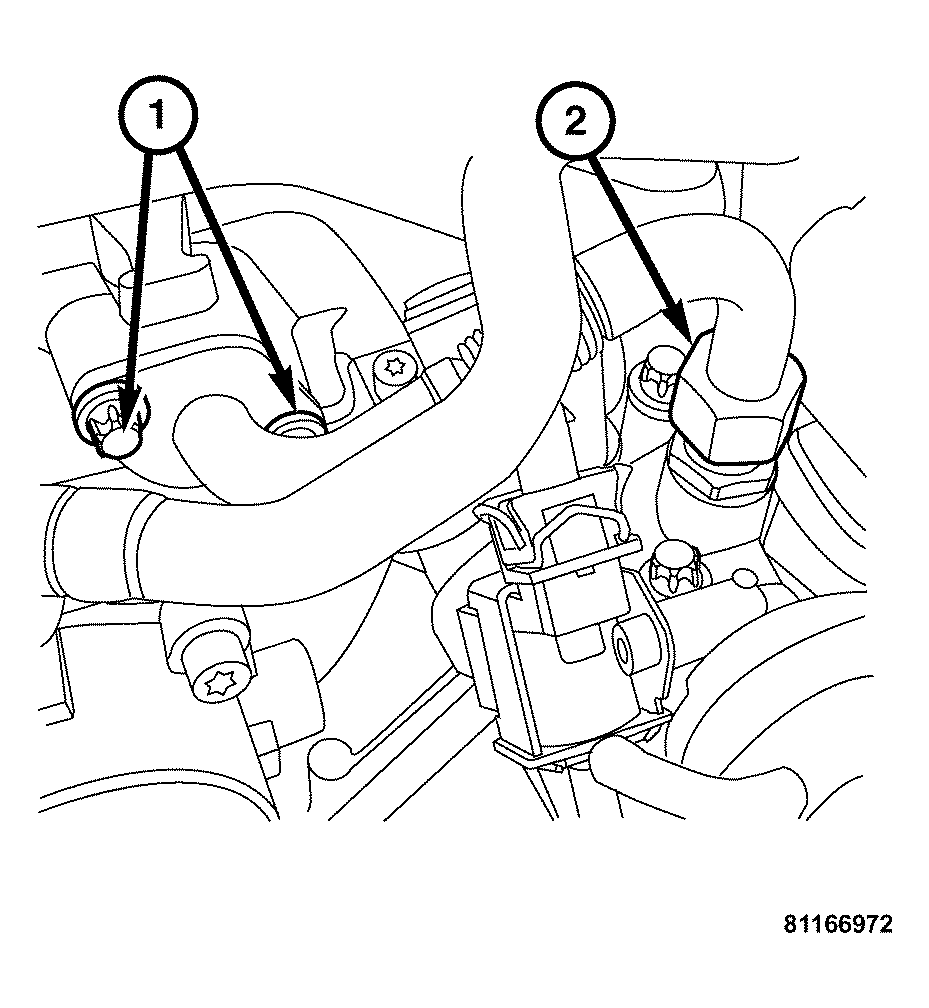

Fig 1: Locating EGR Tube Flange Nut & Bolts
GC0033612Courtesy of DAIMLERCHRYSLER CORP.
  1. Loosely install the EGR tube flange nut (2) to the EGR valve.
  2. Position the new gasket between tube and intake manifold.
  3. Install the tube bolts (1) to intake manifold. Tighten to 31 N.m (23 ft. lbs.).
  4. Tighten the EGR tube flange nut (2) to 11 N.m (95 in. lbs.).
  5. Install the air cleaner housing.
