Exhaust Gas RECIRCULATION Valve: Removal

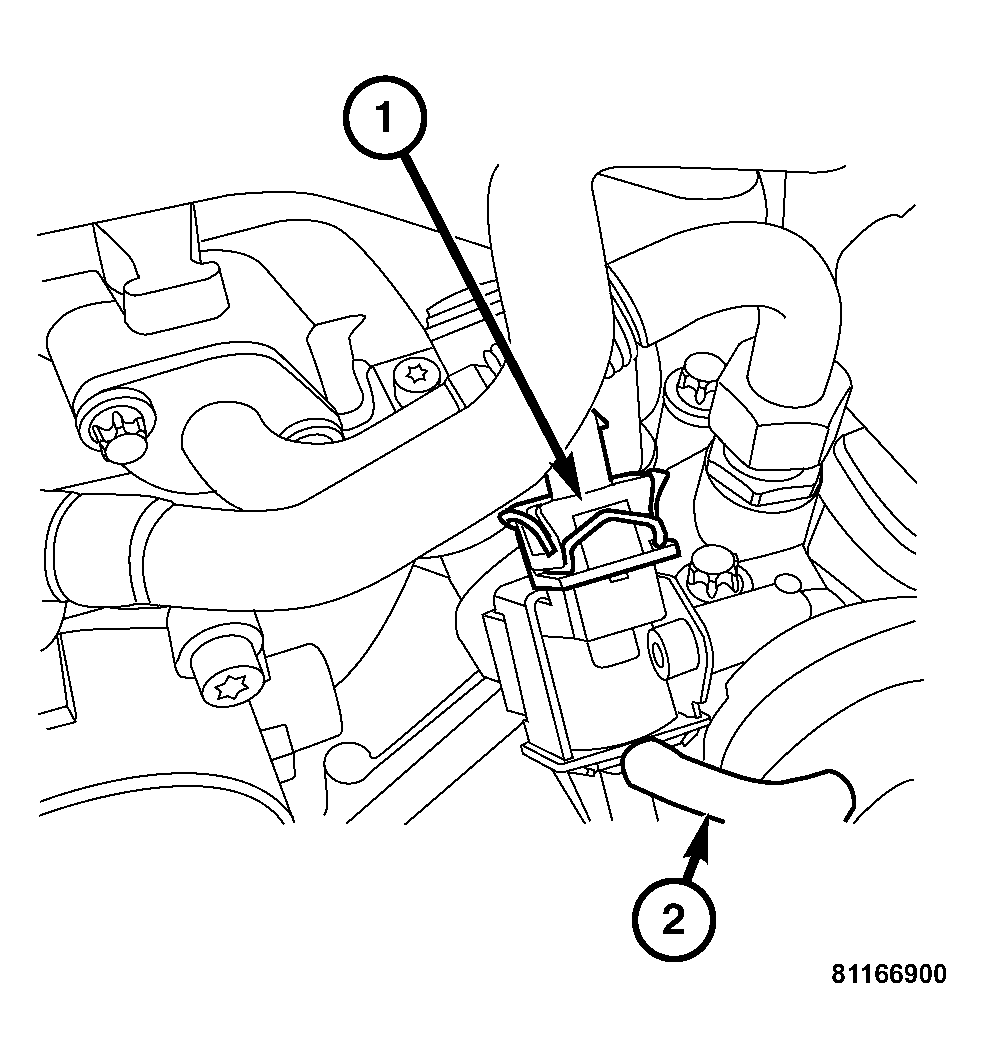

Fig 1: Locating Solenoid Harness Connector & Vacuum Line
GC0033614Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect the negative battery cable.
  2. Remove the air cleaner housing.
  3. Disconnect the solenoid harness connector (1).
  4. Disconnect the solenoid to valve vacuum line (2).

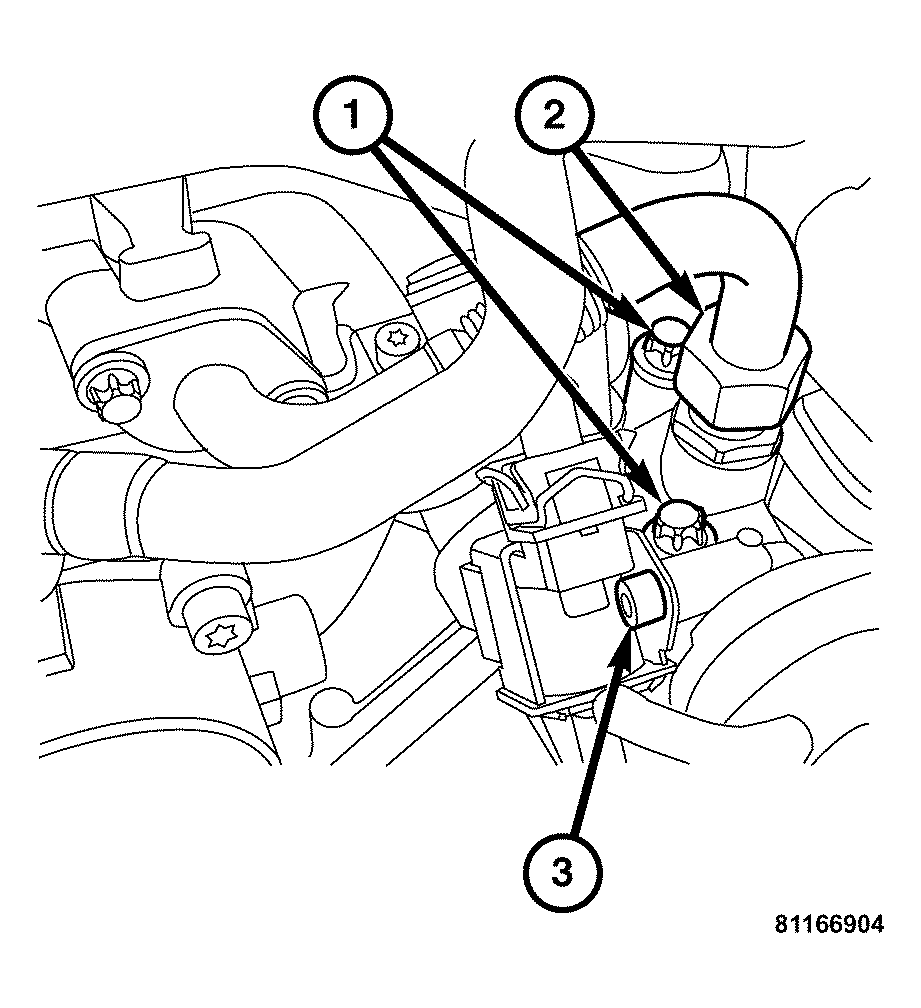

    Fig 2: Locating Flange Nut & Mounting Bolts
    GC0033615Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the EGR tube flange nut (2) at valve.
  6. Remove the solenoid to valve mounting bolt (3).
  7. Remove the valve to cylinder head mounting bolts (1).
  8. Clean the gasket surfaces. Discard the old gasket.
  9. Clean the EGR passages as necessary.
