On/Off Switch Indicator Module: Removal

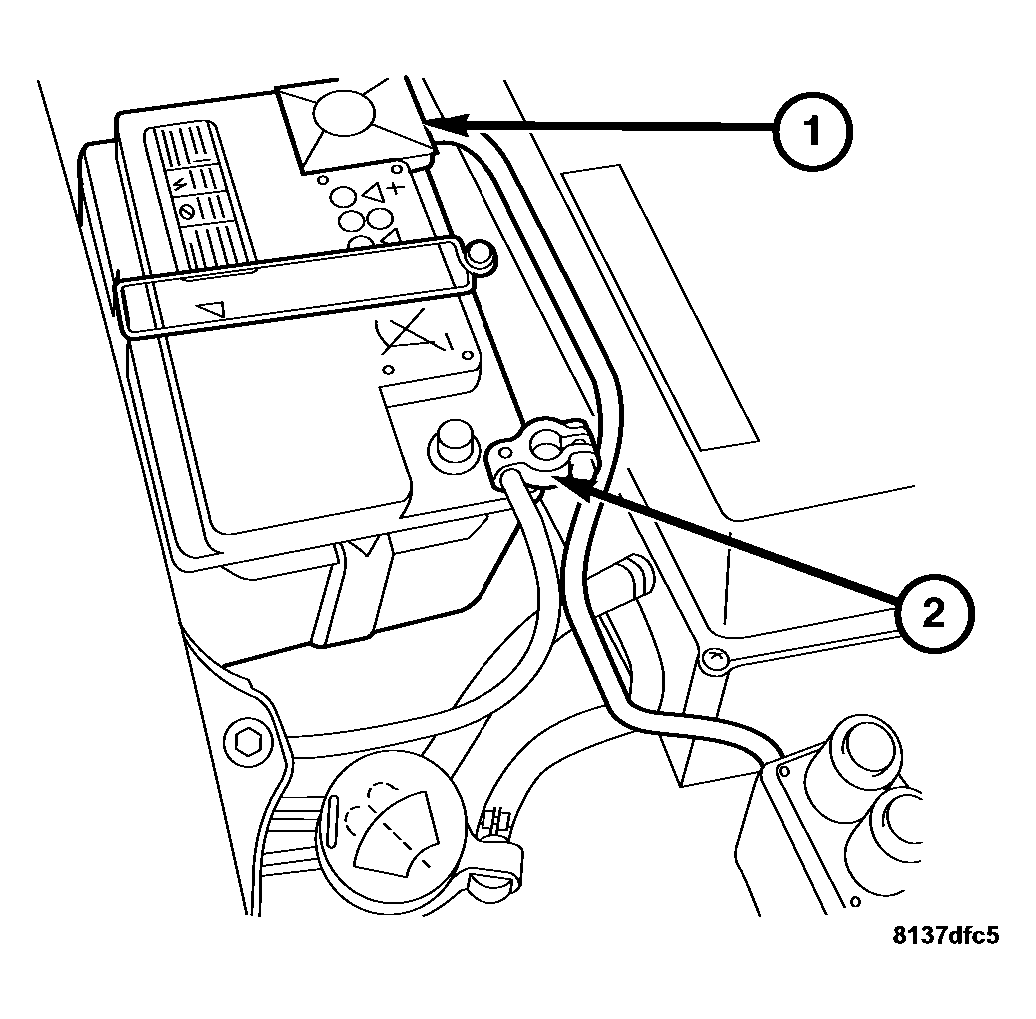

Fig 1: Locating Negative Battery Cable

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect the negative battery cable (2). Wait two minutes for the system capacitor to discharge before further service.

Fig 2: Locating Foam Insulation Panel
Courtesy of DAIMLERCHRYSLER CORP.
Unsnap and remove the carpeted floor mat.
Untuck the carpeting in the passenger footwell, and fold the carpet down to expose the foam insulation.
Remove the foam insulating panel.

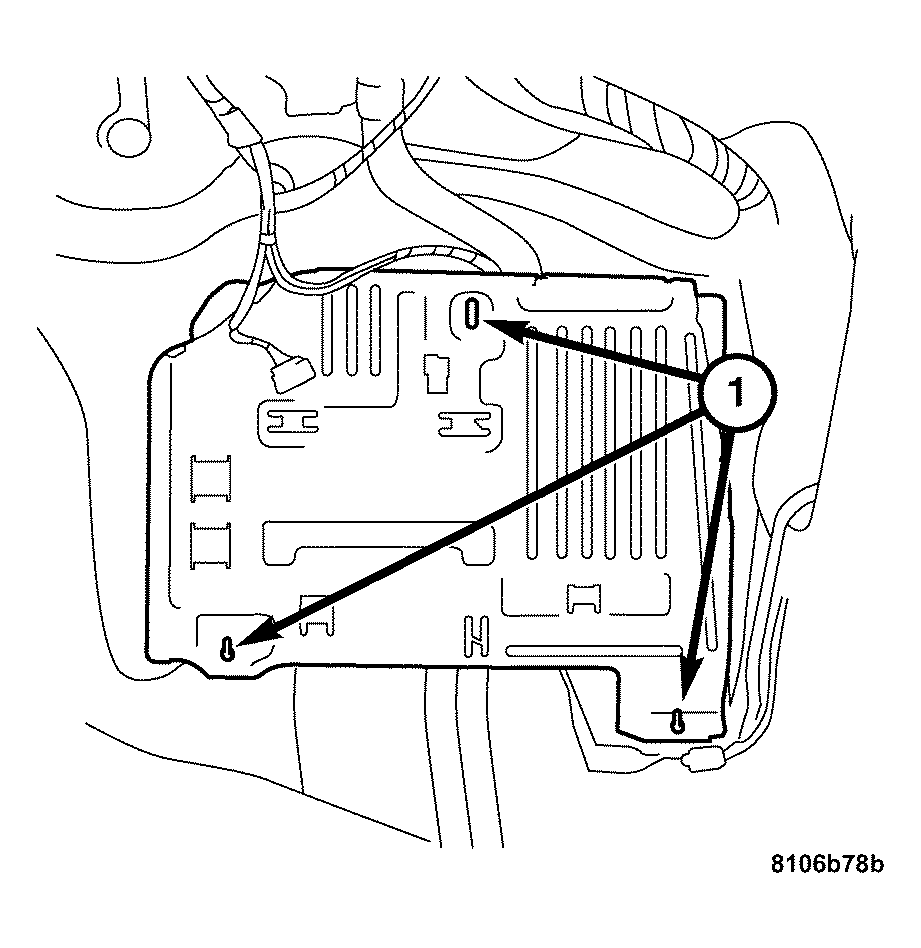

Fig 3: Locating Plastic Retaining Nuts
Courtesy of DAIMLERCHRYSLER CORP.

NOTE: It is not necessary to remove the electrical connectors to rotate the base plate in the passenger footwell.
Remove the plastic retaining nuts (1) from the floor panel and rotate the base plate exposing the passenger seat occupant simulator.

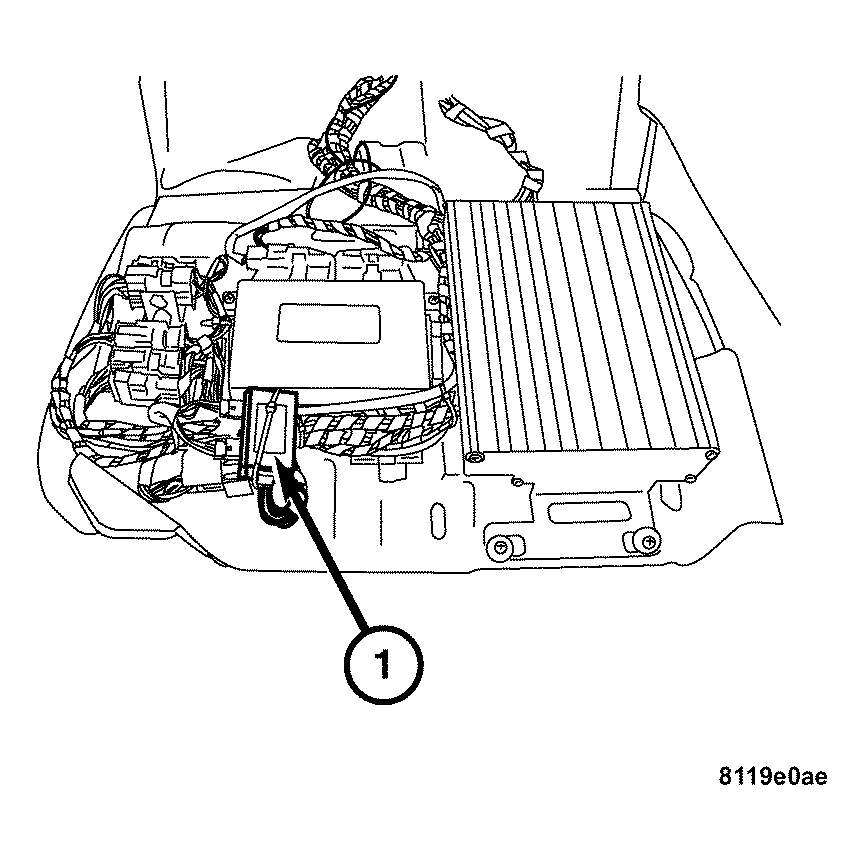

Fig 4: Locating Passenger Seat Occupant Simulator
Courtesy of DAIMLERCHRYSLER CORP.
Remove the plastic tie, and disconnect the passenger seat occupant simulator harness connector. Remove the passenger seat occupant simulator (1).
