Passenger Airbag: Installation

Fig 1: Locating Negative Battery Cable

Courtesy of DAIMLERCHRYSLER CORP.

Verify the negative battery cable (2) is disconnected before proceeding. Wait two minutes for the system capacitor to discharge before further service.

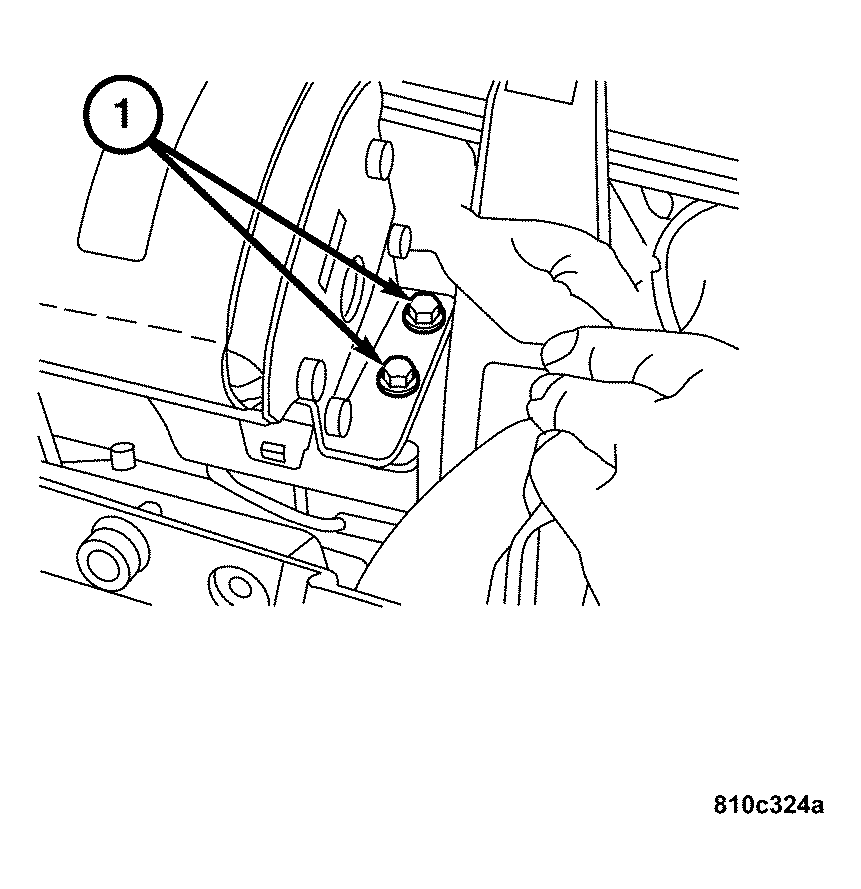

Fig 2: Locating Passenger Airbag Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Carefully position the passenger airbag unit onto the instrument panel.
Install the four bolts (1) that secure the passenger airbag to the instrument panel. Tighten to 35 N.m (26 ft. lbs.).

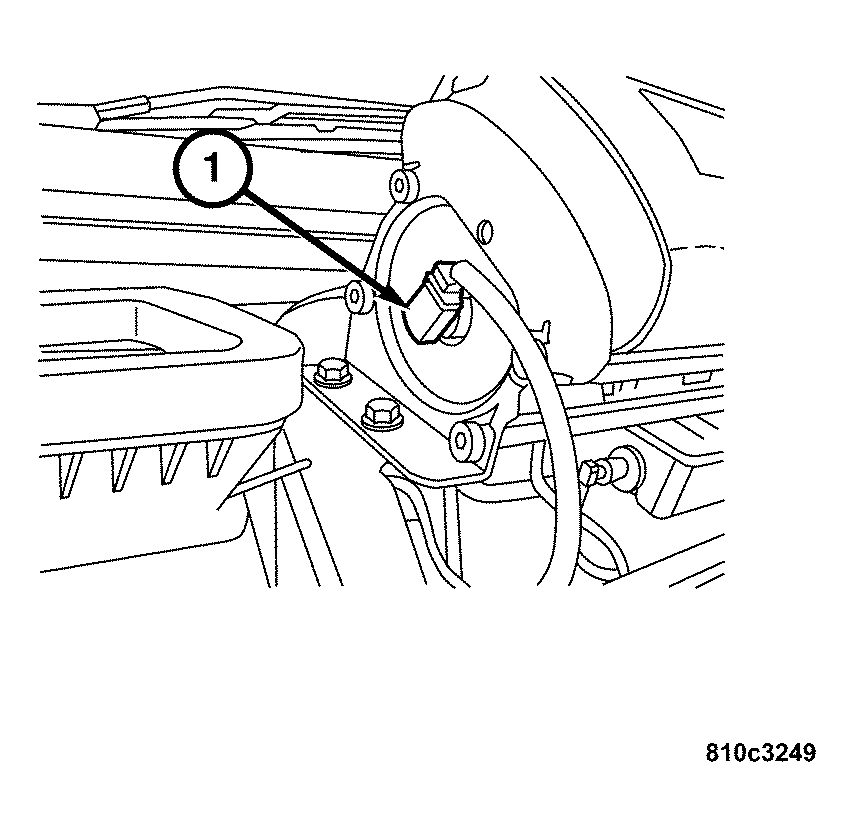

Fig 3: Identifying Passenger Airbag Squib Harness Connector
Courtesy of DAIMLERCHRYSLER CORP.
Connect the passenger airbag squib harness connector (1).
CAUTION: Use caution when connecting the squib harness connector to the passenger airbag inflator connector receptacle. Improper assembly of these pigtail wires and their connector insulators can result in damage to the airbag circuits or connector insulators.

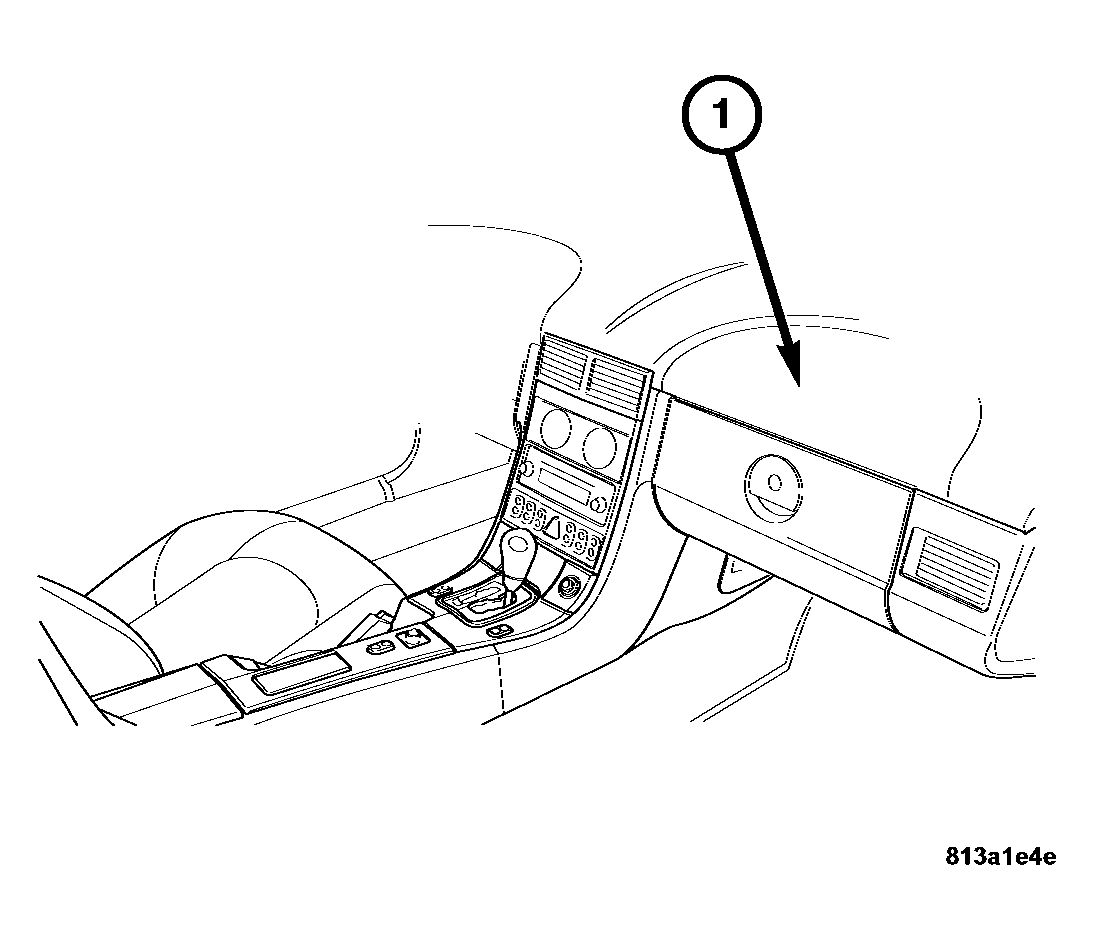

Fig 4: Locating Upper Section Of Instrument Panel
Courtesy of DAIMLERCHRYSLER CORP.
Install the top section of the instrument panel (1) (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - INSTALLATION) .
Do not reconnect the negative battery cable at this time. Perform the Supplemental Restraint System verification test procedure after servicing any Supplemental Restraint System component. (Refer to ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE) .
