Seat Belt Buckle: Installation

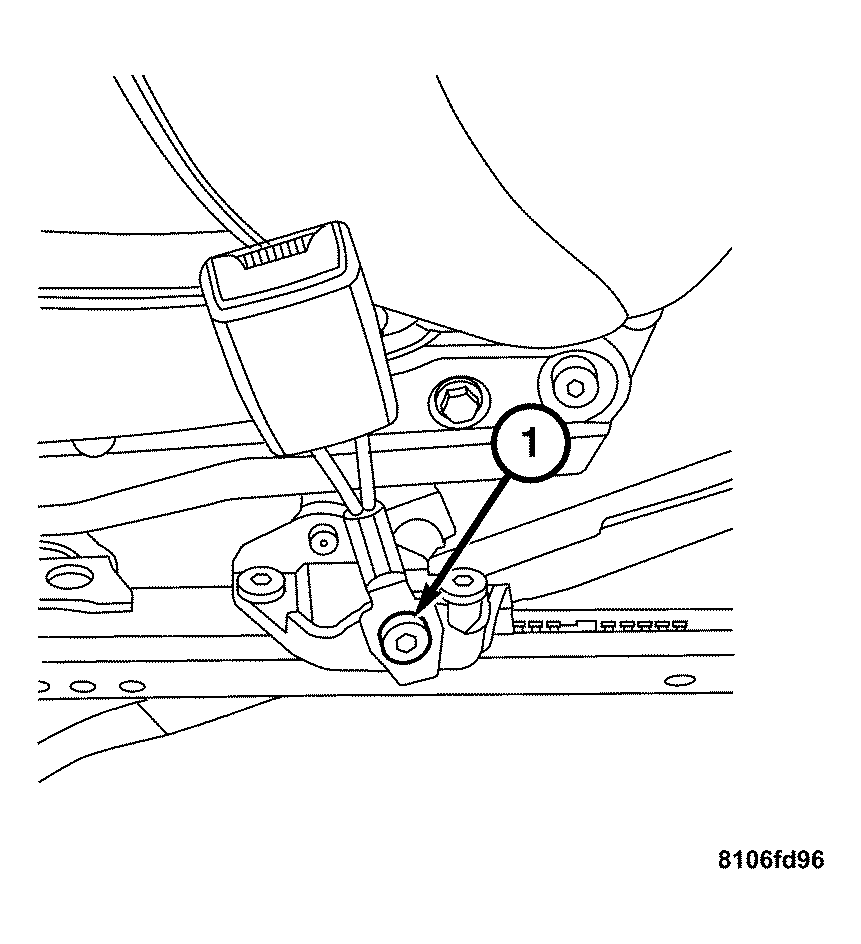

Fig 1: Locating Seat Belt Buckle Bolt
GC0035667Courtesy of DAIMLERCHRYSLER CORP.
  1. Route the seat belt buckle harness through the seat.
  2. Position the seat belt buckle to the seat.
  3. Install the bolt (1) to the seat belt buckle. Tighten to 35 N.m (26 ft. lbs.).
  4. Connect the seat belt buckle harness connector.
    Fig 2: Locating Seat Track Rear Bolts
    GC0033331Courtesy of DAIMLERCHRYSLER CORP.
  5. Install the front seat.
  6. Reconnect the power seat harness connectors.
  7. Install the seat belt bolt (2). Tighten the seat belt bolt to 35 N.m (26 ft. lbs.).
  8. Install the seat track rear bolts (1). Tighten the rear bolts to 50 N.m (37 ft. lbs.).
    Fig 3: Identifying Seat Track Front Bolts
    GC0035695Courtesy of DAIMLERCHRYSLER CORP.
  9. Move the seat to the full rearward position.
  10. Install the seat track front bolts (1). Tighten the front bolts to 50 N.m (37 ft. lbs.).
