Throttle Position Sensor: Removal

The throttle position sensor attaches to the side of the throttle body. See Fig 1 and Fig 2.

Fig 1: Throttle Position Sensor and Idle Air Control Motor

Courtesy of DAIMLERCHRYSLER CORP.

1 - IAC

2 - PCM

3 - TPS

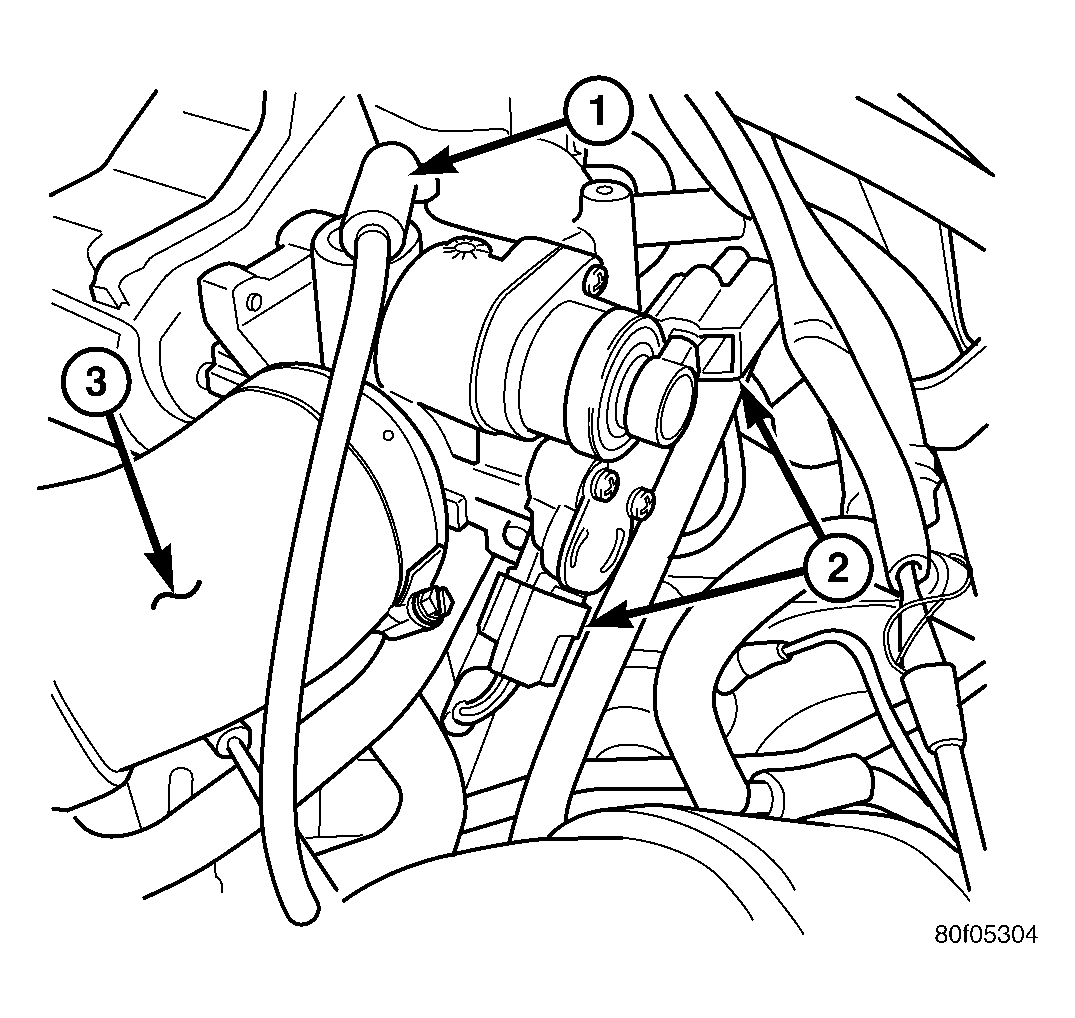

Fig 2: THROTTLE BODY CONNECTIONS - 2.4L TURBO

Courtesy of DAIMLERCHRYSLER CORP.

1 - Purge Hose

2 - Electrical Connections

3 - Inlet Hose

Remove the air cleaner lid and makeup air hose. Loosen the clamp and relocate assembly.
Remove the negative battery cable.
Disconnect electrical connector from the throttle position sensor.
Remove throttle position sensor mounting screws.
Remove throttle position sensor.
