Ignition Coil: Description

WARNING: THE DIRECT IGNITION SYSTEM GENERATES APPROXIMATELY 40,000 VOLTS. PERSONAL INJURY COULD RESULT FROM CONTACT WITH THIS SYSTEM.

The coil pack consists of 2 coils molded together. The coil pack is mounted on the valve cover. See Fig 1 or Fig 2.

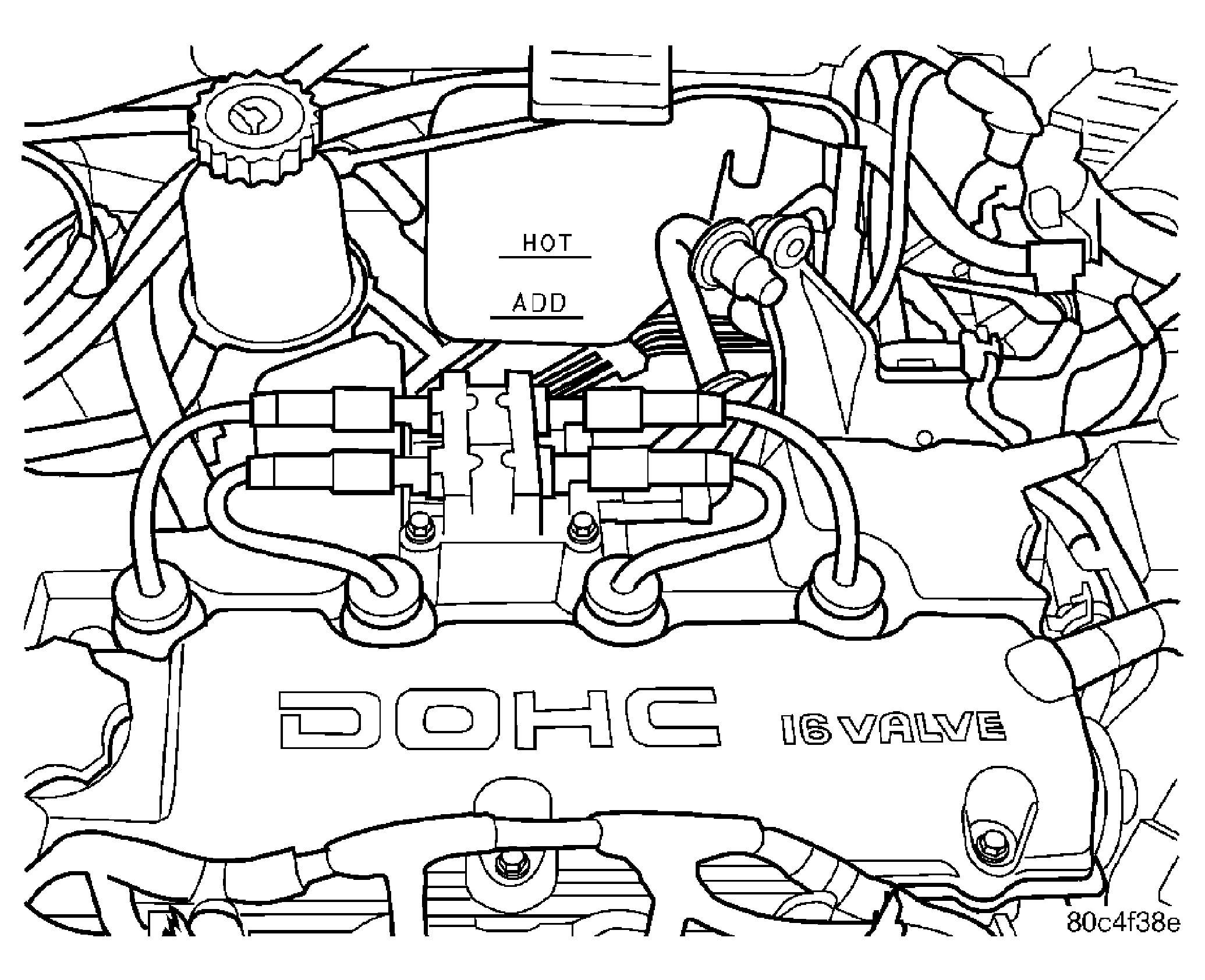

Fig 1: Ignition Coil Pack-2.0/2.4L

Courtesy of DAIMLERCHRYSLER CORP.

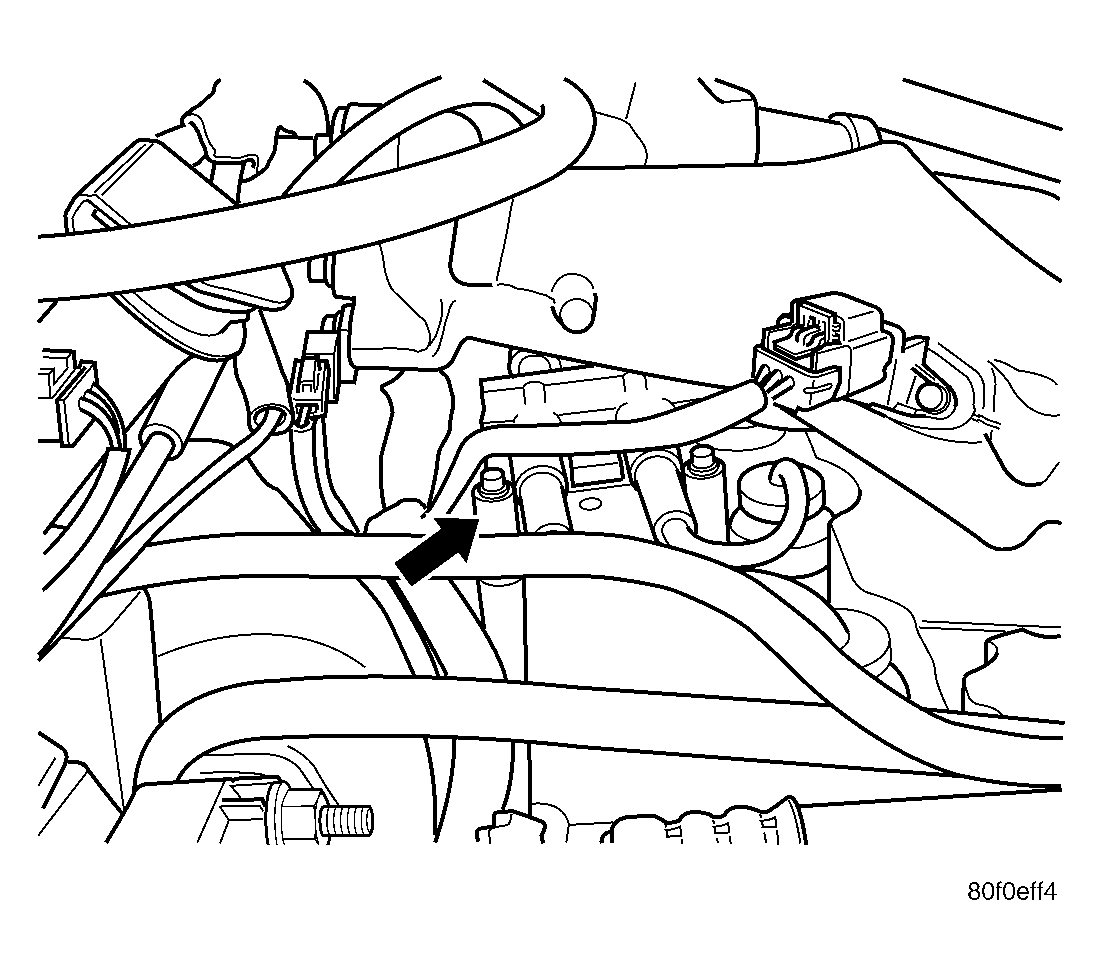

Fig 2: IGNITION COIL LOCATION - 2.4L TURBO

Courtesy of DAIMLERCHRYSLER CORP.
