Vacuum Gauge Reading Examples

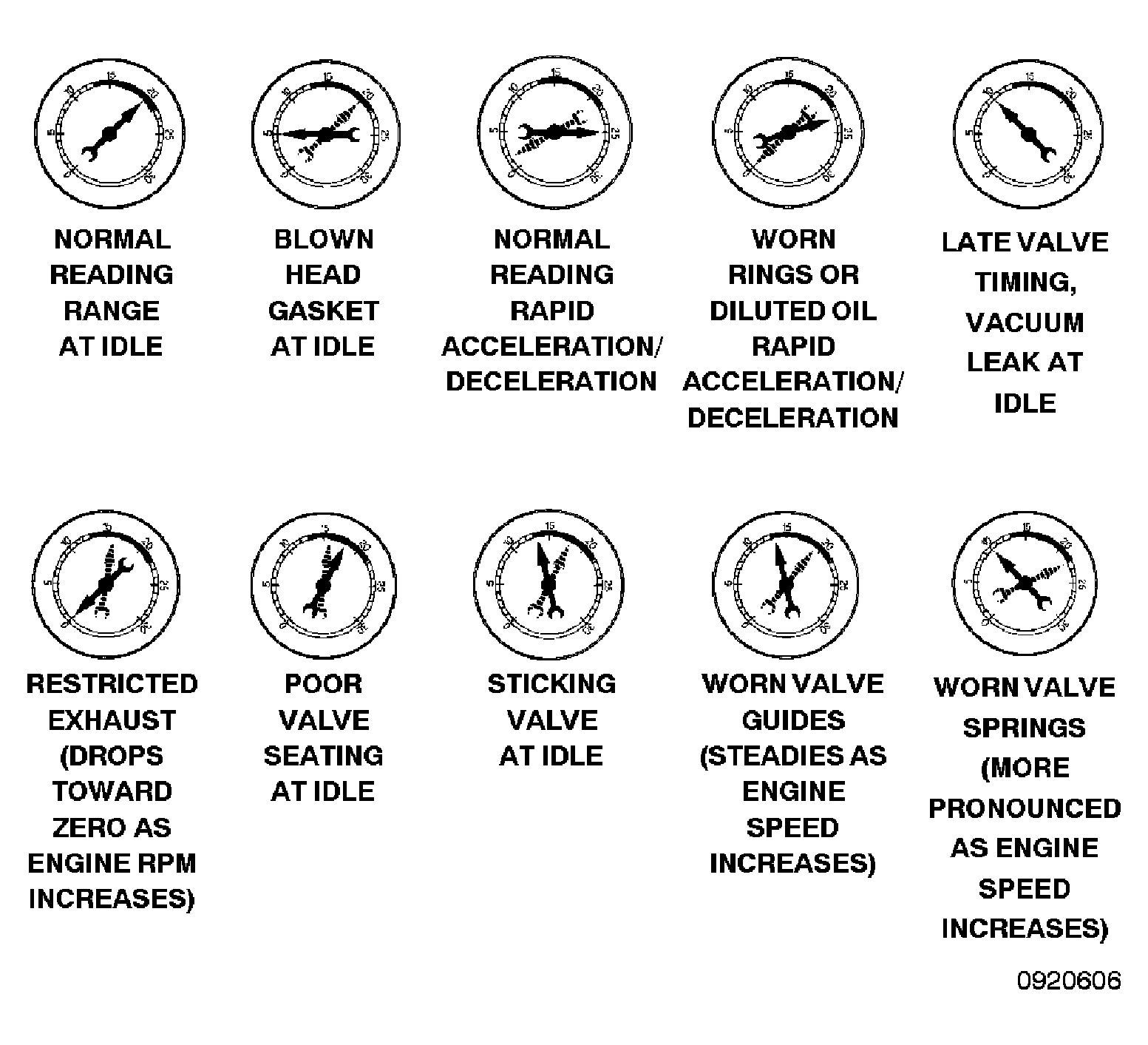

Fig 1: Vacuum Gauge Reading Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
