PDC Relay Locations

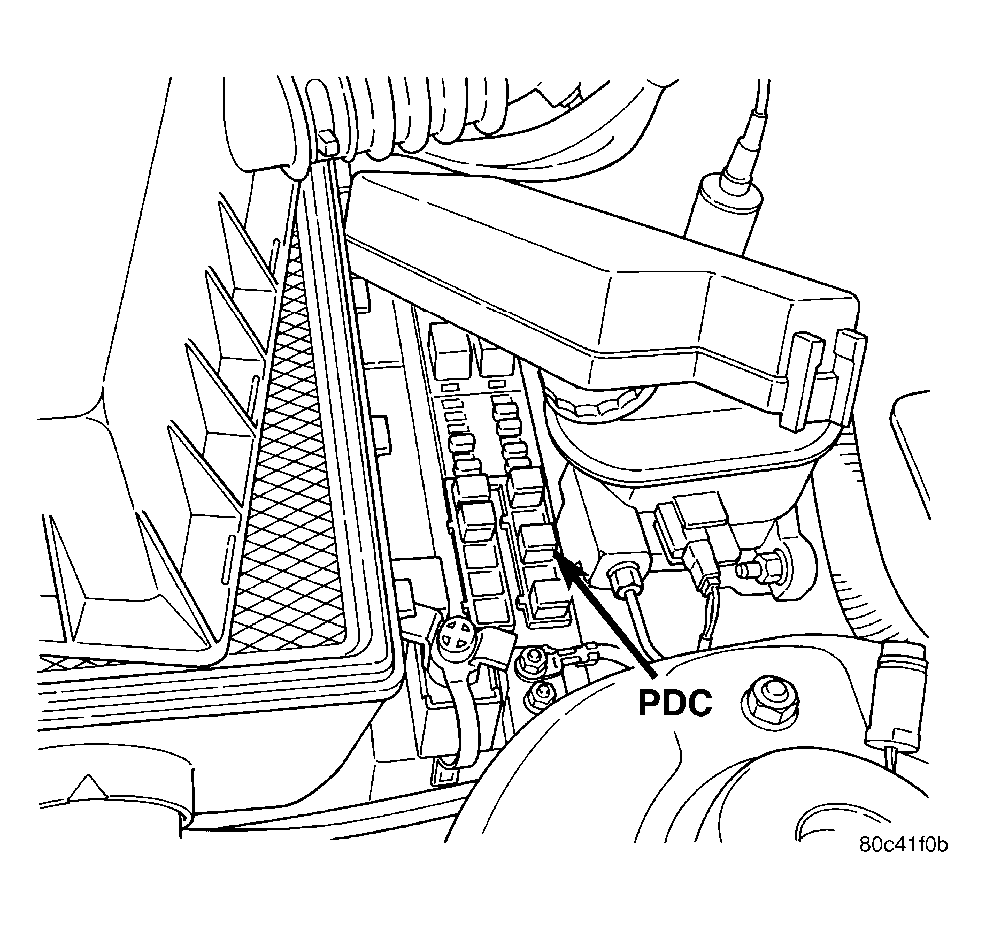

Fig 1: Identifying PDC Relays
G04548919Courtesy of DAIMLERCHRYSLER CORP.

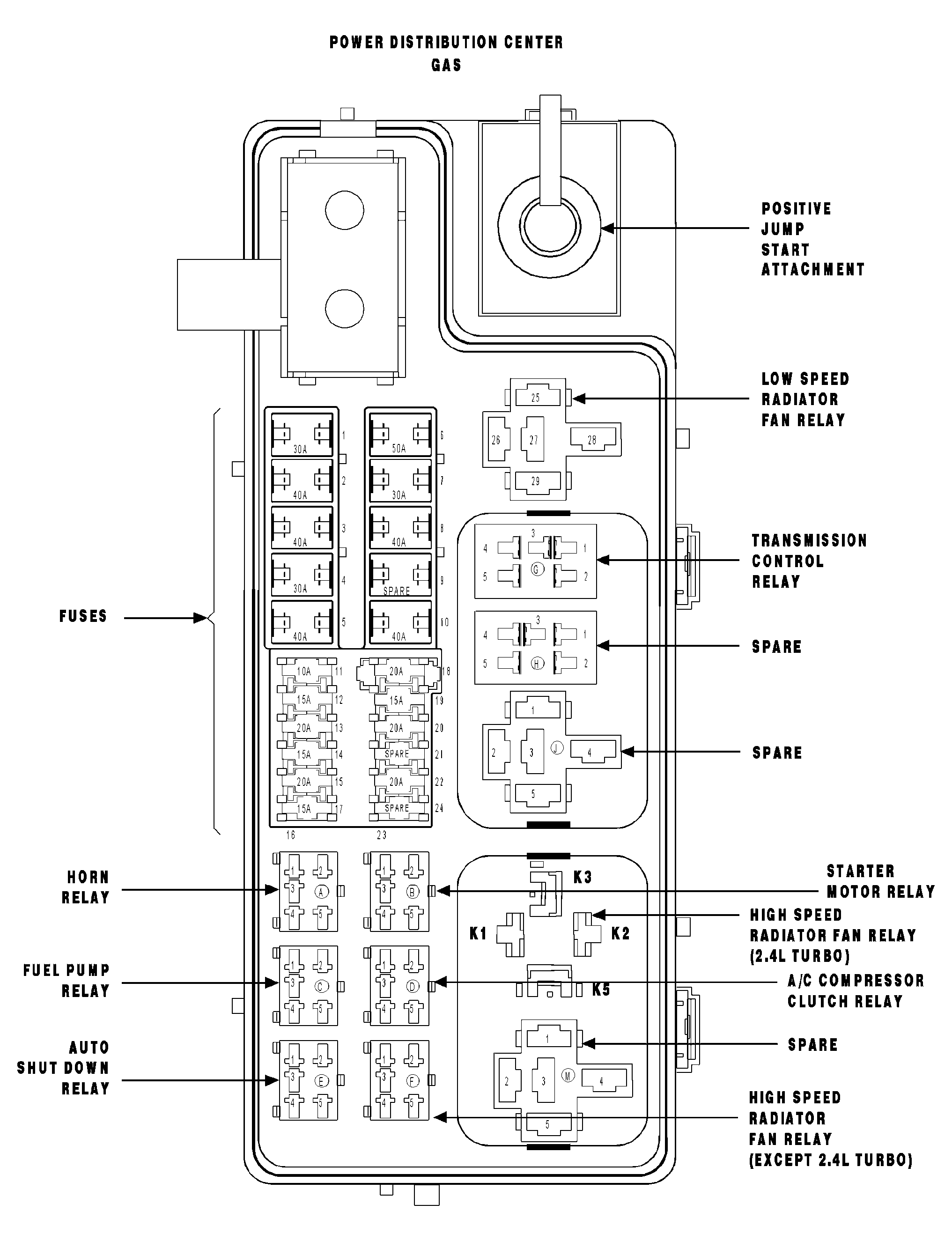

Fig 2: Identifying Power Distribution Center
G04548954Courtesy of DAIMLERCHRYSLER CORP.

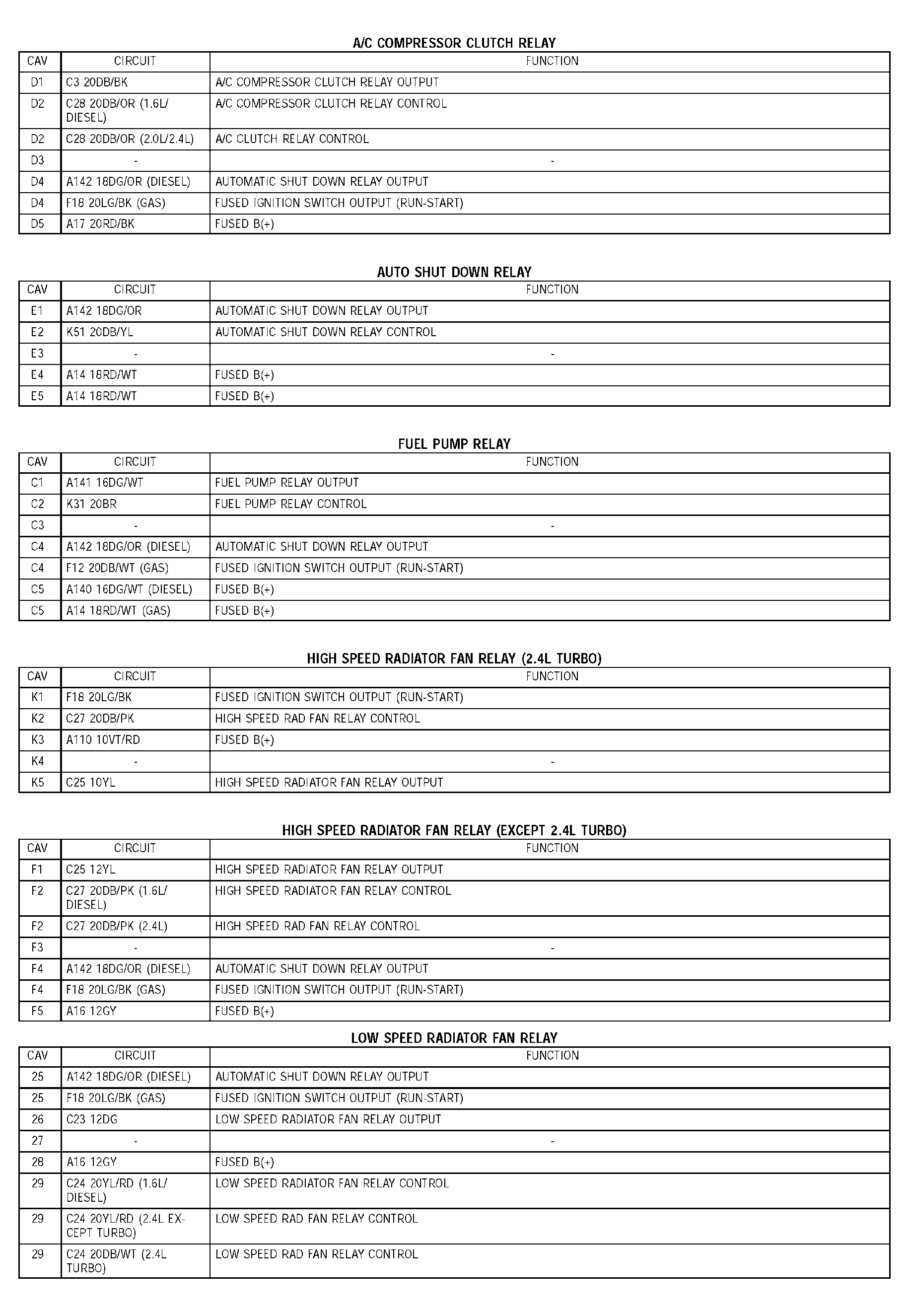

Fig 3: Identifying Power Distribution Center Circuit Functions
G04548955Courtesy of DAIMLERCHRYSLER CORP.
