Powertrain Control Module (1.6L) - Black 90 Way

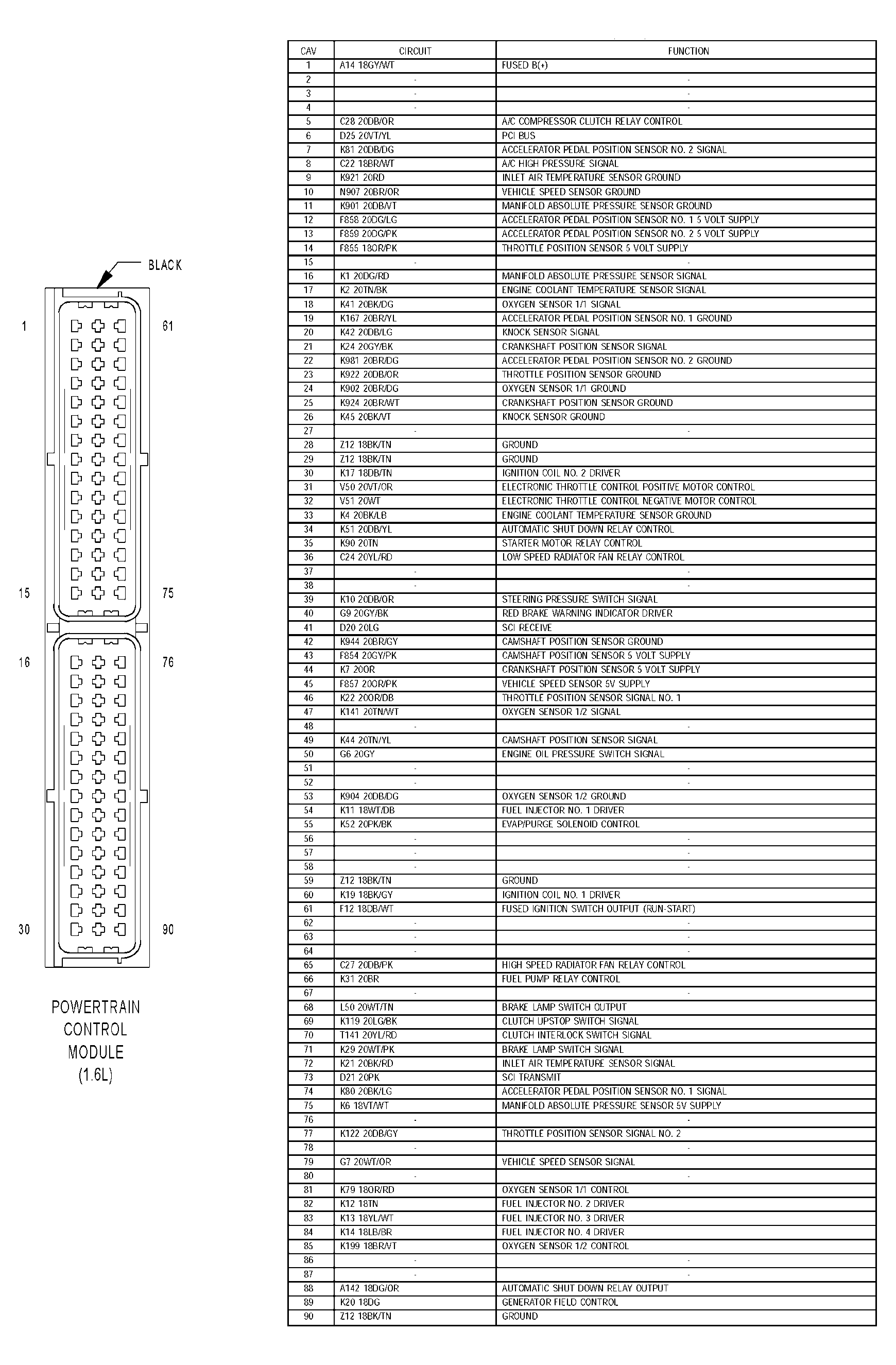

Fig 1: Powertrain Control Module (1.6L) - Black 90 Way
G04548956Courtesy of DAIMLERCHRYSLER CORP.
