Occupant Restraint Controller: Installation

  1. Connect ORC connector and ensure that the connector and all locking tabs are engaged.
    CAUTION: USE SUPPLIED NUTS ONLY

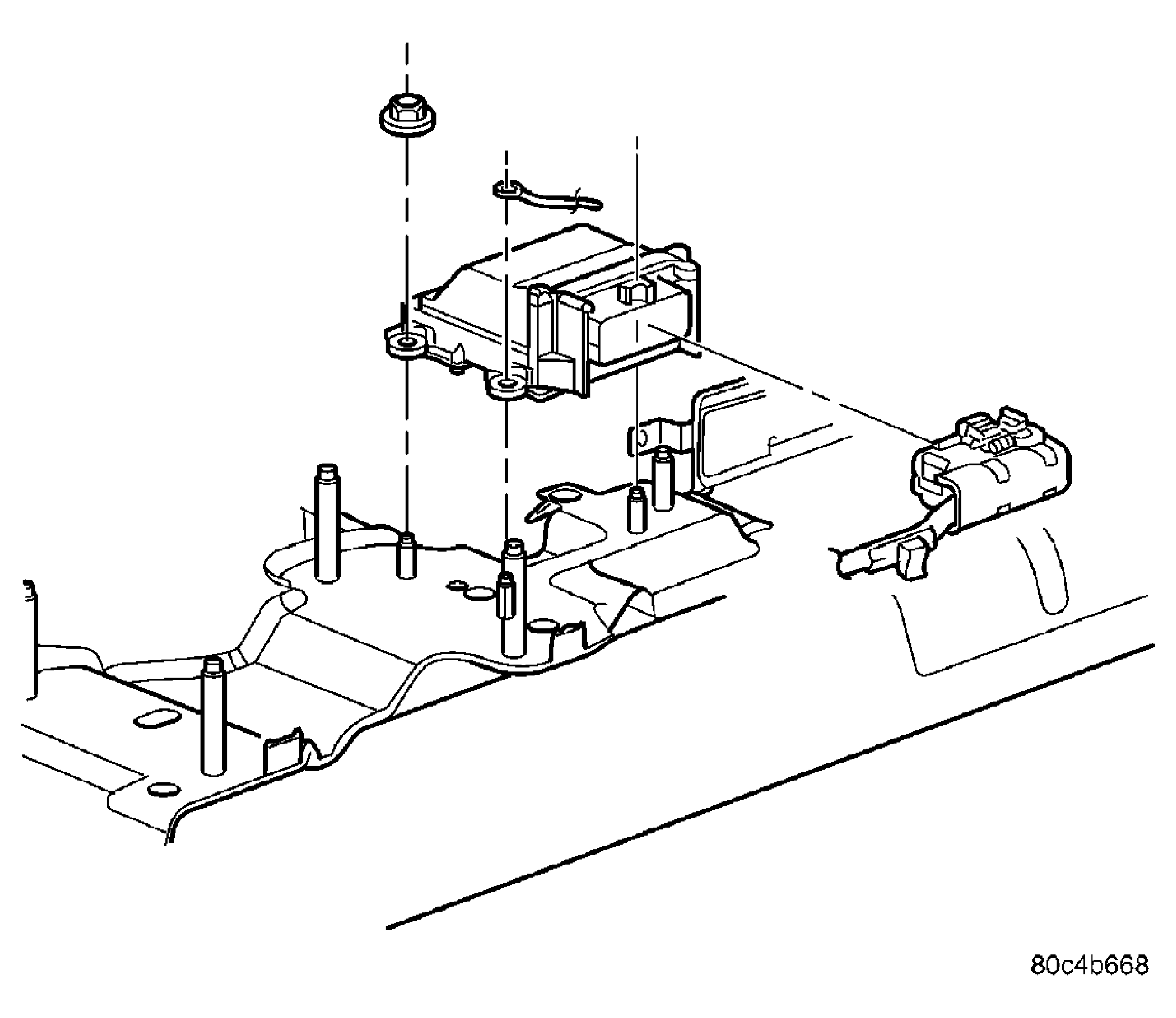

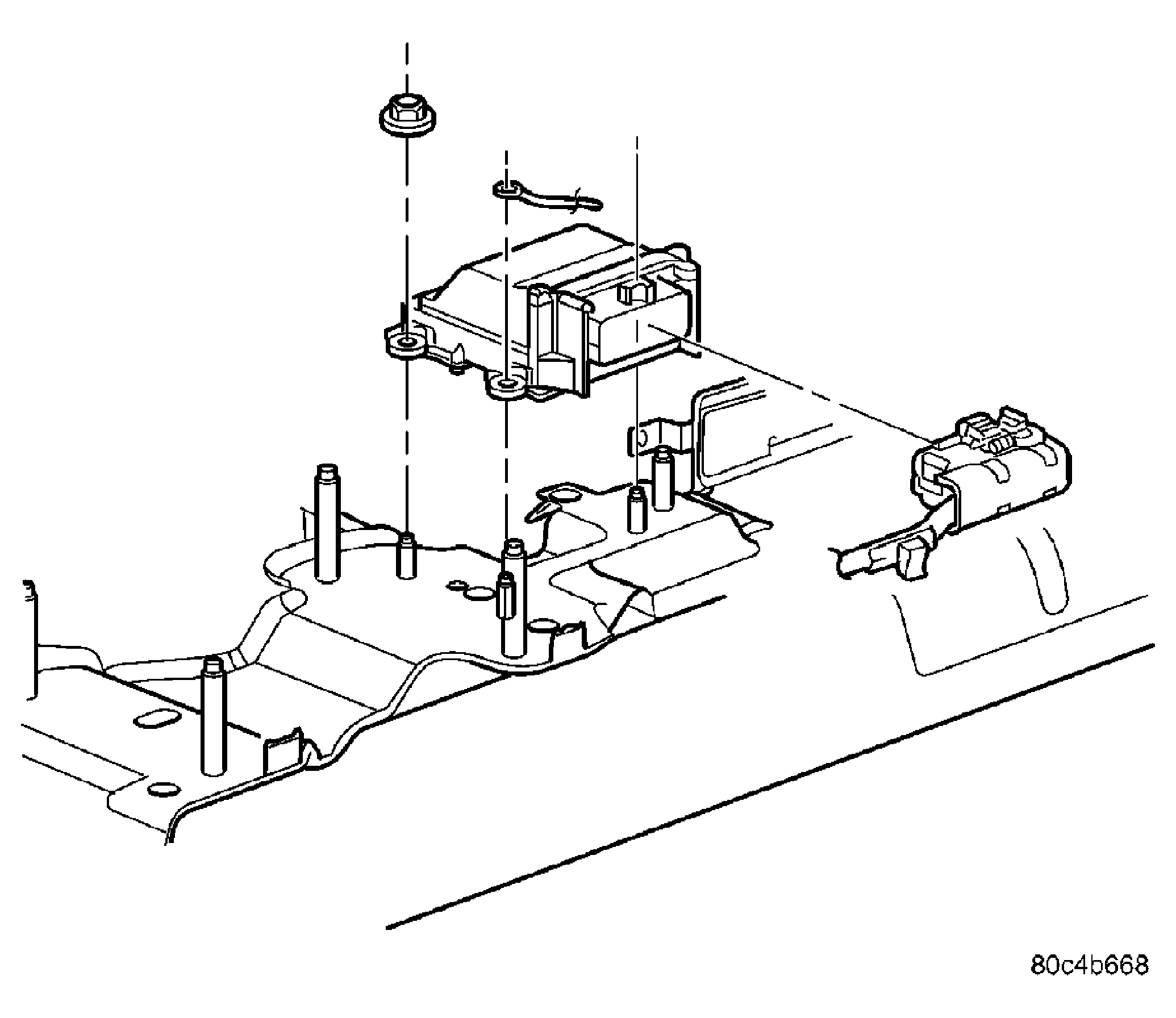

  2. Position ORC (arrow pointing forward) in the console floor bracket, replace ground eyelet, and attach the nuts and tighten to 9.6 to 14 N.m (85 to 125 in. lbs.) torque. See Figure.
    NOTE: Place the ground eyelet over the front (towards the front of the vehicle) weld stud when reattaching the ORC.
  3. Install center console assembly.
    WARNING: DO NOT CONNECT BATTERY NEGATIVE CABLE YET (Refer to ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING - AIRBAG SYSTEM) .
  4. Close hood.
  5. Verify vehicle and system operation.
