Fuel Pressure Regulator: Installation

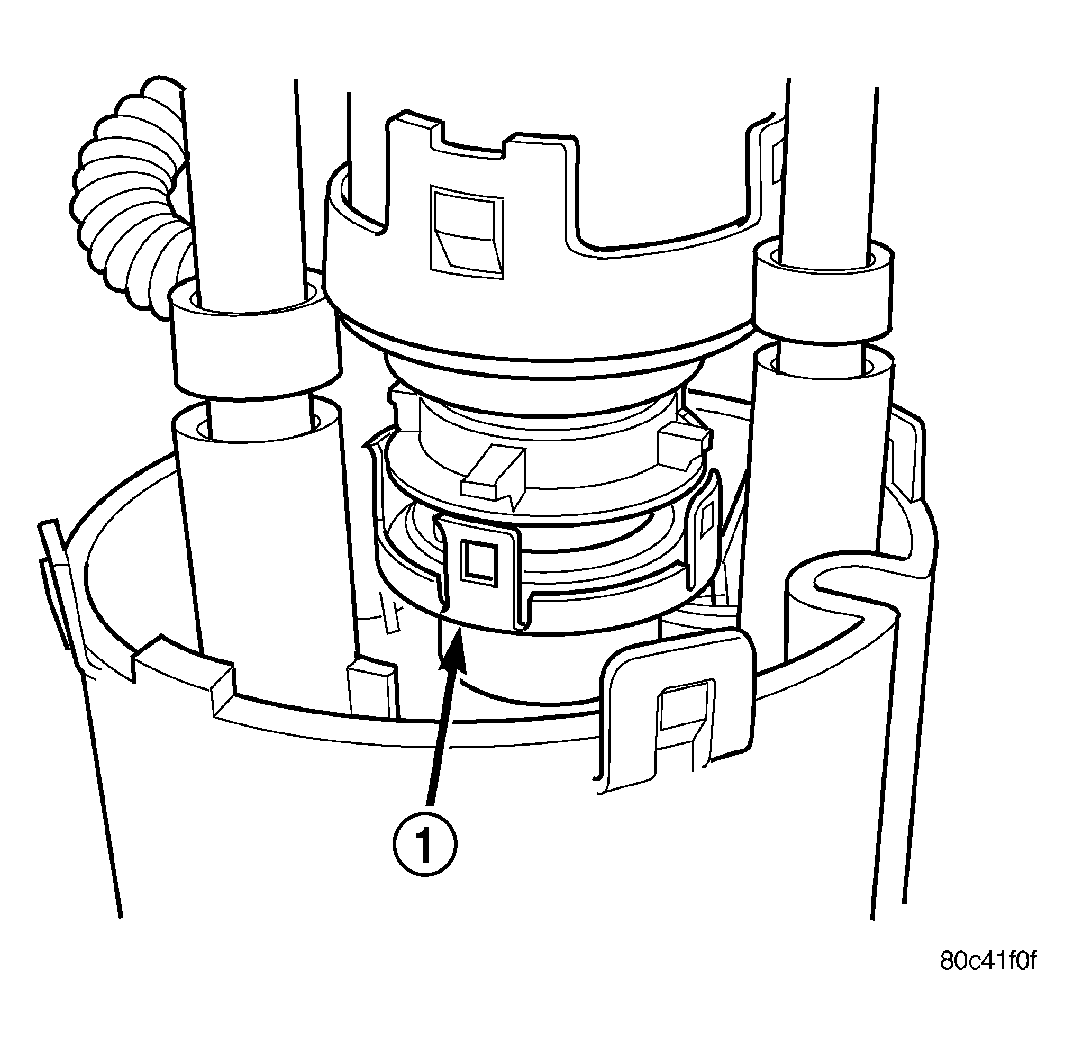

The fuel pressure regulator is part of the fuel pump module. See Figure. Remove the fuel pump module from the fuel tank to access the fuel pressure regulator. Refer to FUEL PUMP MODULE .

1. Lightly lubricate the O-ring with clean engine oil and place them into opening in pump module.
2. Push regulator into opening in pump module.
3. Push regulator retainer over tabs on housing.
4. Install Fuel Pump Module, refer to FUEL PUMP MODULE .
