Powertrain Control Module C3 (NGC) - Black/Natural 38 Way

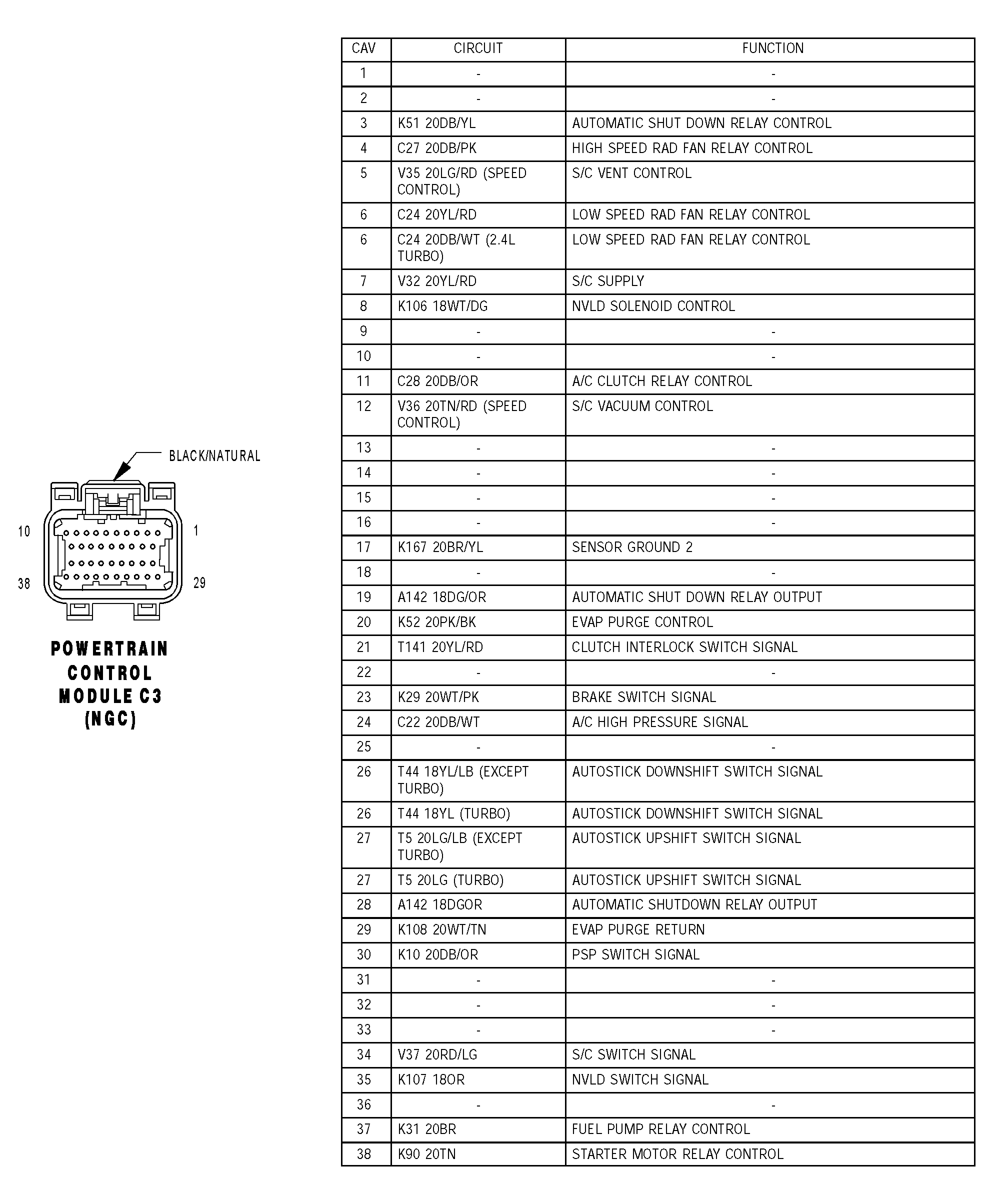

Fig 1: Powertrain Control Module C3 (NGC) - Black/Natural 38 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
