Seat Airbag: Description

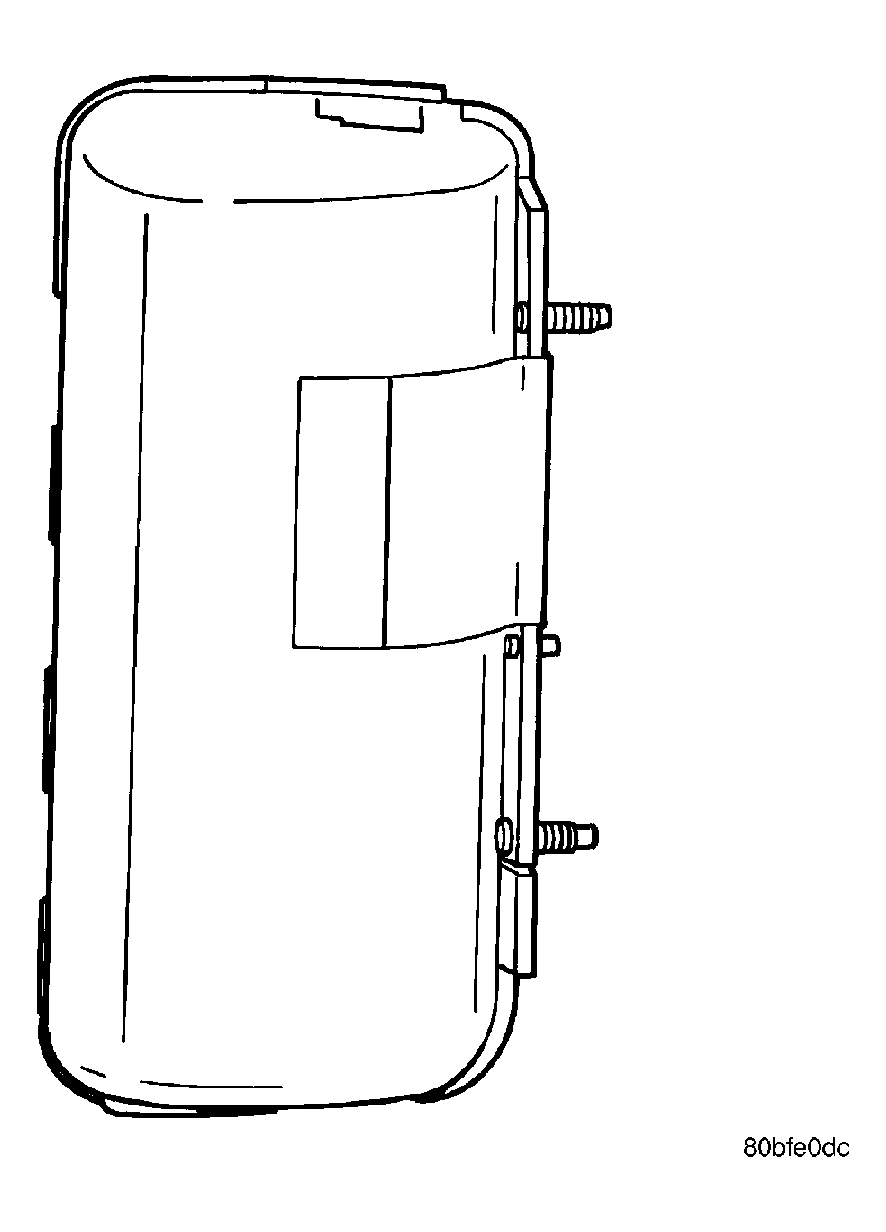

Fig 1: Seat Airbag - Typical
GC0023019Courtesy of DAIMLERCHRYSLER CORP.

The left and right seat airbags are located in the outboard end of the front seat backs. The airbag contains a bag, an inflator (small canister of highly compressed gas), and a mounting bracket. The seat airbag cannot be repaired and must be replaced, with the entire seat back assembly, if deployed or in any way damaged. See Fig 1.
