Pacifica Base, 3.8 L
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Powertrain Diagnostic Procedures
>>
Connector PINOUTS
>>
Fuel Pump Module - Black 6 Way
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuel Pump Module - Black 6 Way

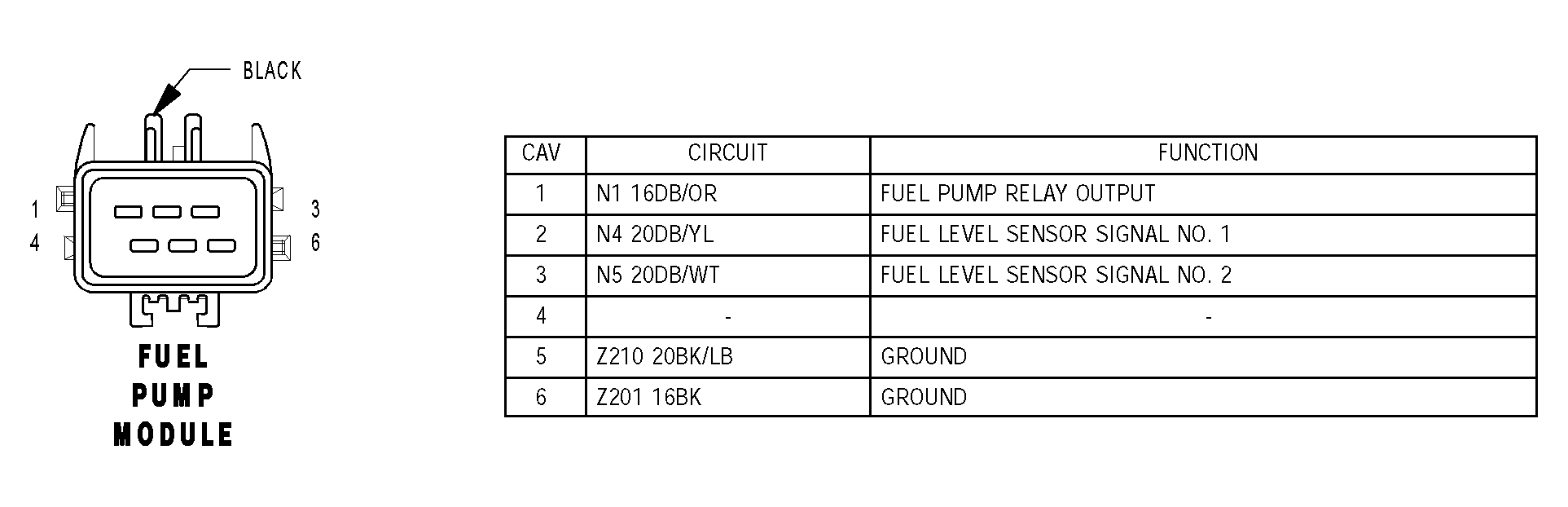

Fig 1: Identifying Fuel Pump Module Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
