Body Control Module: Installation

  1. Place the BCM onto the mounting bracket.

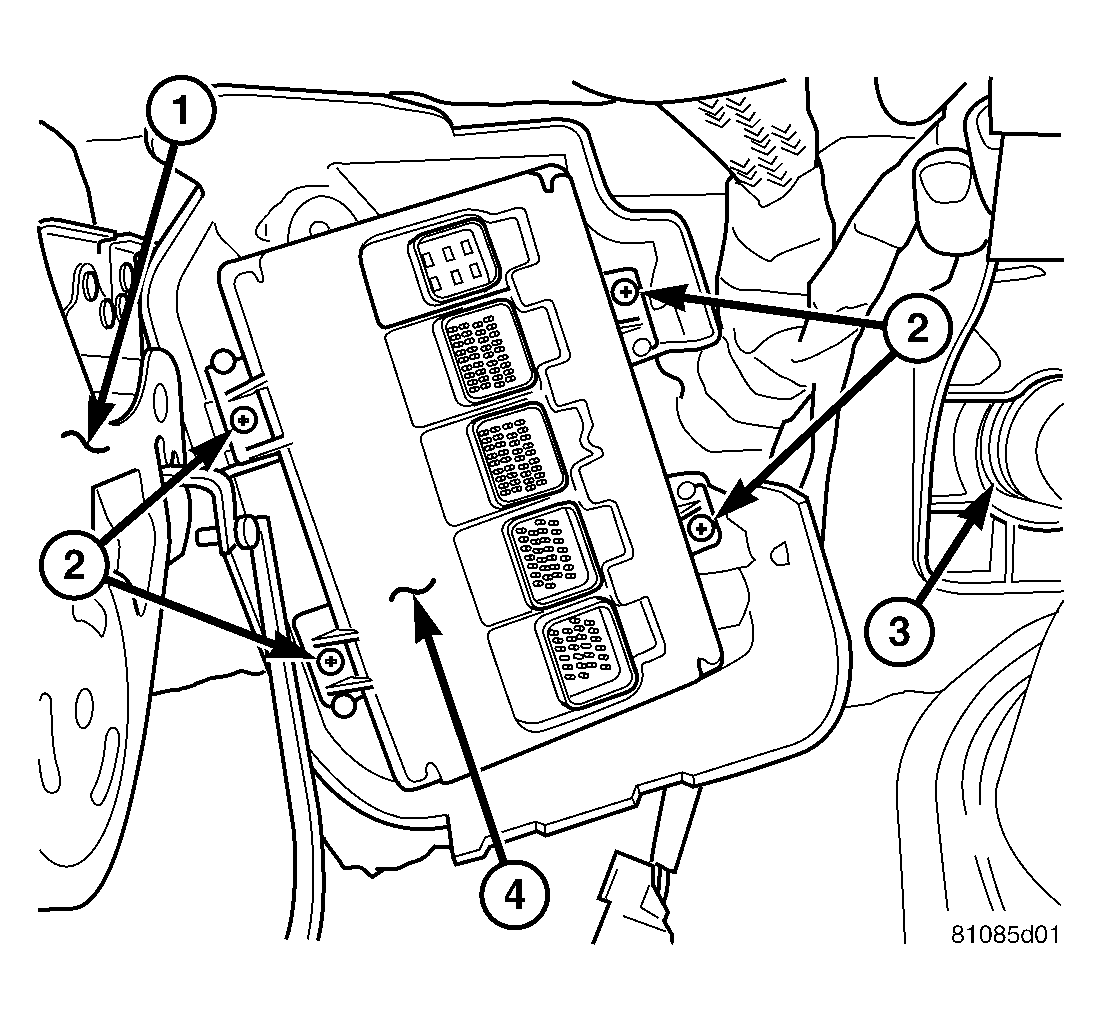

  2. Install the four screws holding the BCM to the bulkhead. See Figure.
  3. Connect the five wire connectors to the BCM.
  4. Attach the 72-way bulkhead connector onto the Body Control Module (BCM) mounting assembly.
  5. Install the knee blocker airbag (Refer to ELECTRICAL/RESTRAINTS/KNEE BLOCKER AIRBAG - INSTALLATION) .
  6. Install the lower instrument panel silencer.
    7. WARNING: DO NOT CONNECT THE BATTERY NEGATIVE CABLE. (Refer to ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING - AIRBAG SYSTEM) FIRST. FAILURE TO DO SO COULD RESULT IN OCCUPANT PERSONAL INJURY OR DEATH.
  7. Verify vehicle and system operation.
