Controller Antilock Brake (MK25): Installation

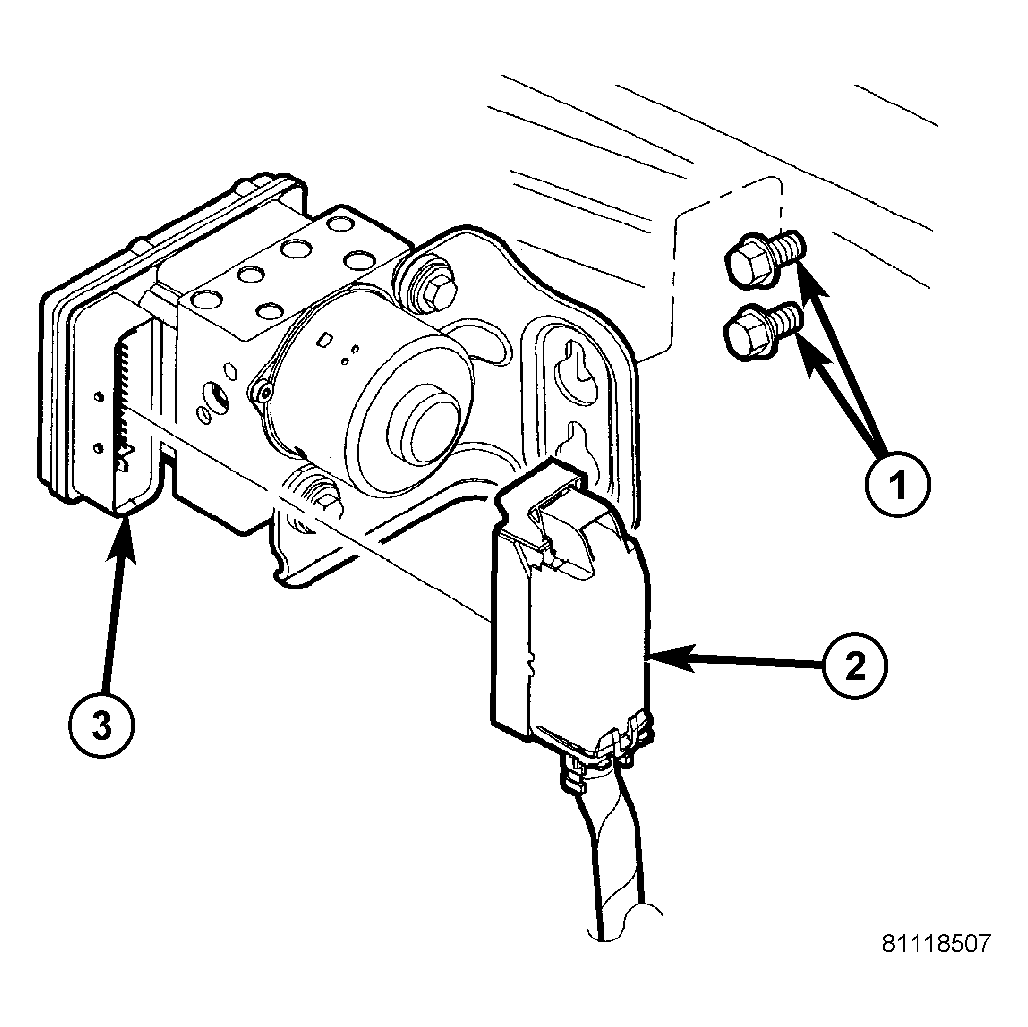

  1. Connect 47-way wiring connector at CAB. See Figure.
  2. Align CAB solenoids and pump/motor wiring connector with HCU valves and connector passage. See Fig 1. Slide CAB onto HCU.

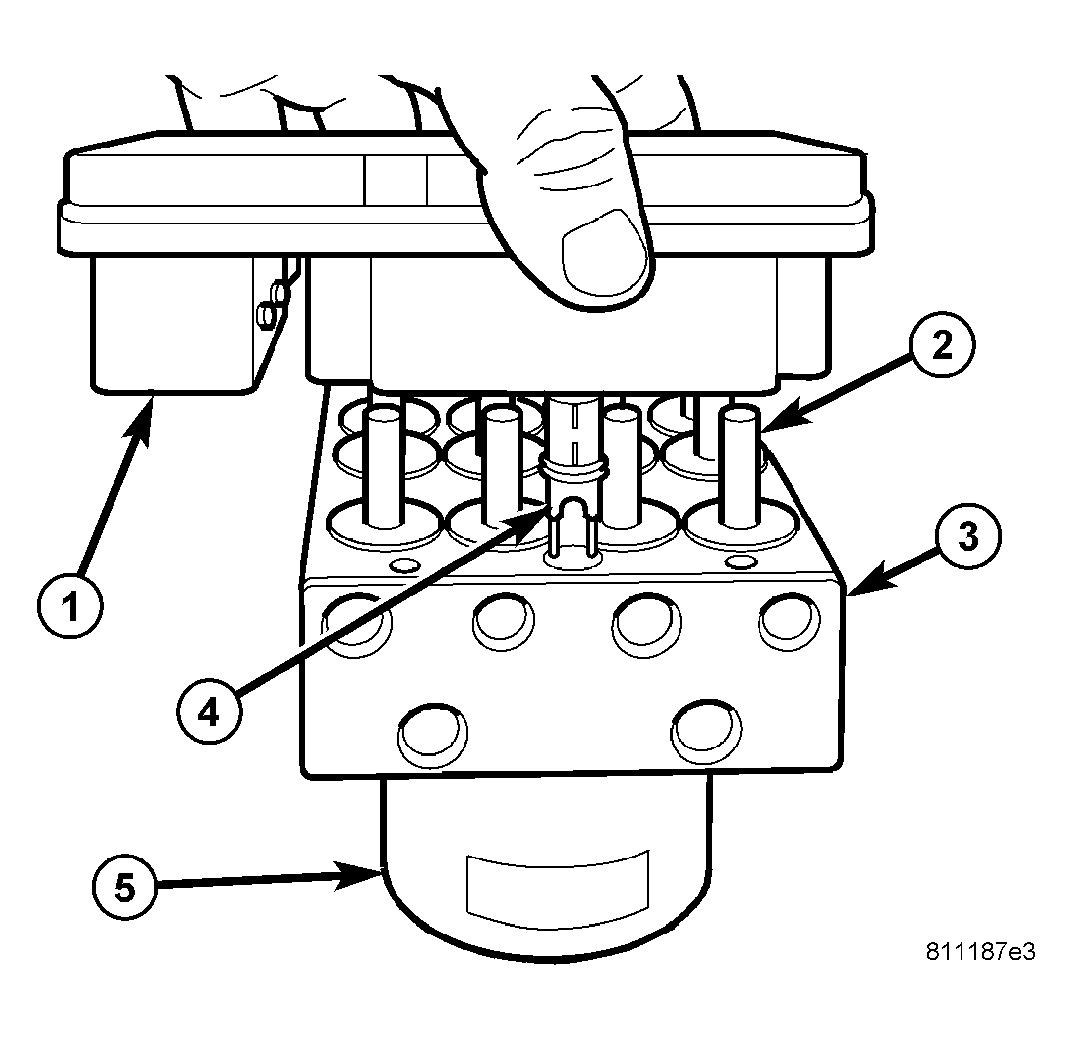

    Fig 1: CAB Removal/Installation
    GC0000026Courtesy of DAIMLERCHRYSLER CORP.
    1 - CAB
    2 - VALVES
    3 - HCU
    4 - PUMP/MOTOR WIRING CONNECTOR
    5 - PUMP/MOTOR

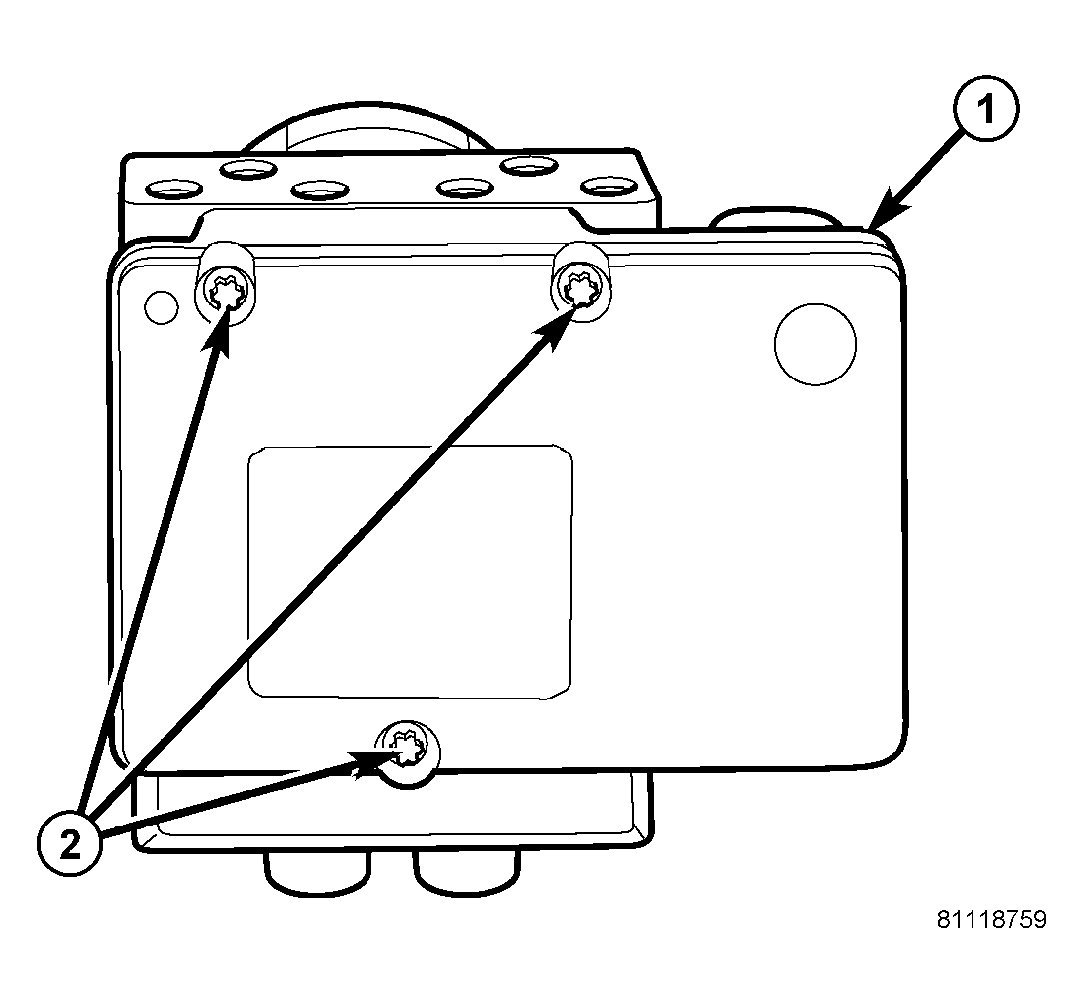

  3. Install 3 screws mounting CAB to HCU. See Figure. Tighten CAB mounting screws to 2 N.m (17 in. lbs.) torque.
  4. Lower vehicle.
  5. Connect negative battery cable to battery post.
  6. Hook up DRBIII® to initialize CAB. Check and clear any faults.
