Powertrain Control Module: Removal

  1. Disconnect the negative battery cable.
  2. Raise vehicle and support.
  3. Remove the left front wheel.
  4. Remove the left front splash shield.
  5. Unlock and remove the 4 connectors. See Fig 1.
    Fig 1: PCM Location
    GC0000028Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove the 3 mounting screws. See Fig 2.

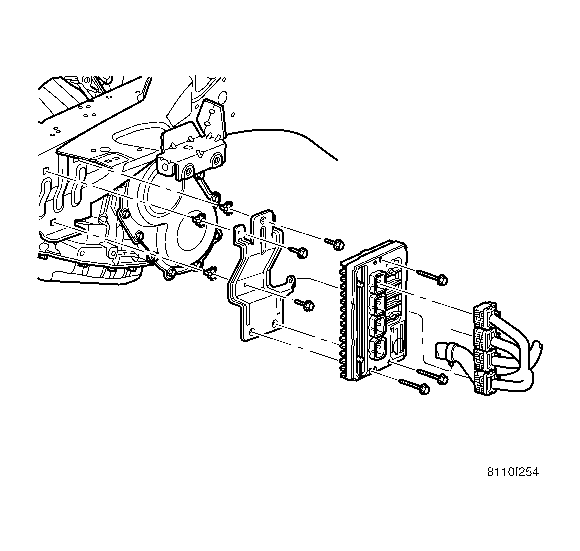

    Fig 2: PCM Assembly
    GC0000030Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove the PCM.
