Accelerator Pedal: Installation

Place accelerator pedal assembly over mounting studs protruding from floor pan. See Fig 1. Tighten retaining nuts to 12 N.m (105 in. lbs.) torque.

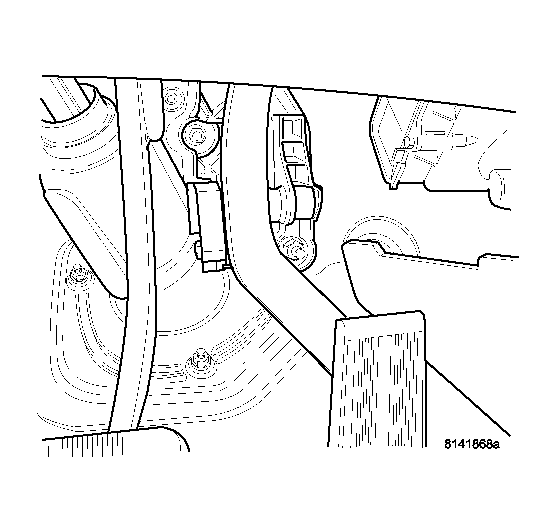

Fig 1: Mounting Nuts
Courtesy of DAIMLERCHRYSLER CORP.
Place cable through slot in top of pedal shaft. See Fig 2.

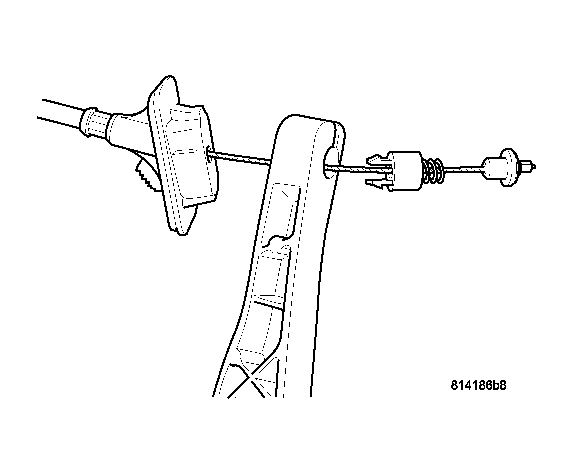

Fig 2: Cable Attachment Exploded View
Courtesy of DAIMLERCHRYSLER CORP.
While holding pedal lever. Push retainer clip forward in vehicle engaging it into the pedal lever. See Fig 3.

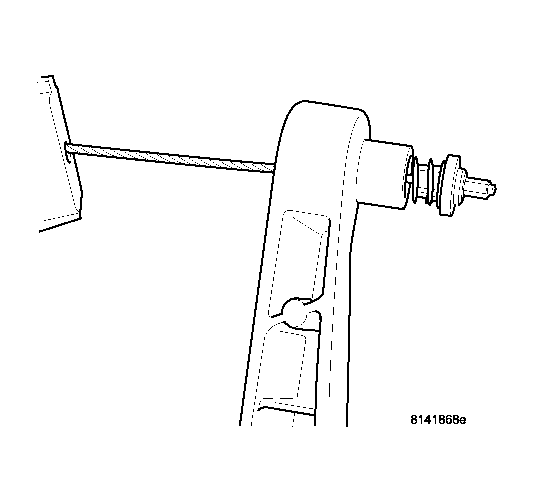

Fig 3: Cable Attachment To Pedal
Courtesy of DAIMLERCHRYSLER CORP.
Hold the throttle body lever in the wide open position and install the throttle cable. See Fig 4.

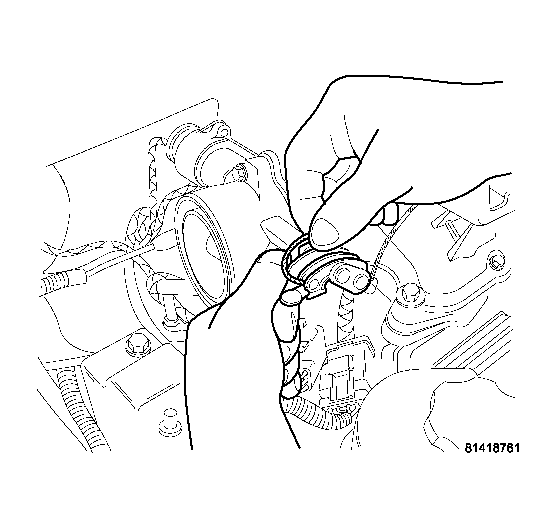

Fig 4: Cable At Throttle Body
Courtesy of DAIMLERCHRYSLER CORP.
Before starting engine, operate accelerator pedal to check for any binding.
