Fuel Injector: Installation: 3.5L

Lightly lubricate the fuel injector O-rings with a couple drops of clean engine oil. See Fig 1.

Fig 1: Fuel Injector O-Ring
Courtesy of DAIMLERCHRYSLER CORP.
Install retaining clips on fuel injectors.
Push injectors into fuel injector rail until clips are in the correct position. See Fig 2.

Fig 2: Fuel Injectors Installed
Courtesy of DAIMLERCHRYSLER CORP.

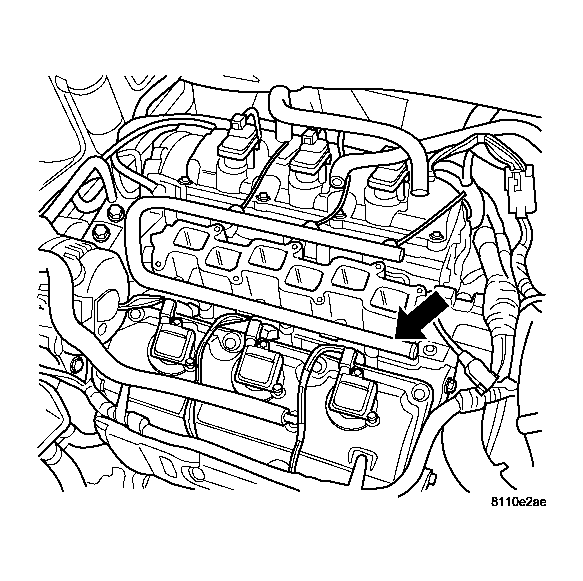

Position fuel rail over cylinder heads, and push rail into place. Tighten fuel rail mounting bolts to 28 N.m (250 in. lbs.) torque. See Fig 3.

Fig 3: Fuel Rail
Courtesy of DAIMLERCHRYSLER CORP.

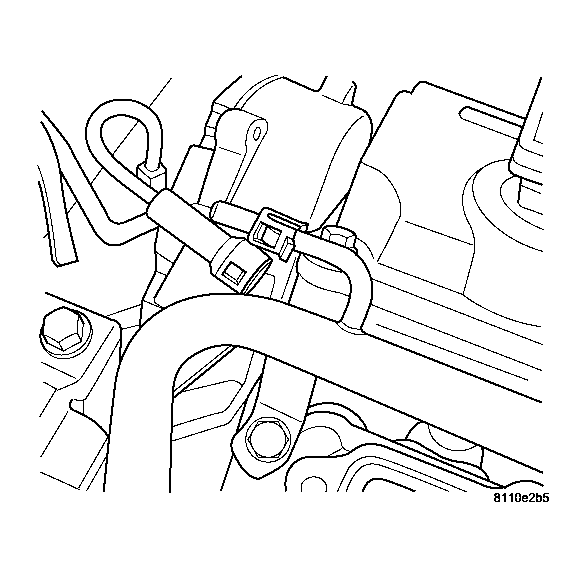

Connect the fuel supply tube quick connect fitting to the fuel rail. See Fig 4.

Fig 4: Fuel Line Quick Connector
Courtesy of DAIMLERCHRYSLER CORP.
Connect the electrical connectors to the fuel injectors.
Install intake manifold plenum. (Refer to INTAKE MANIFOLD ).
Connect negative cable to battery.
