Fuel Injector: Installation: 3.8L

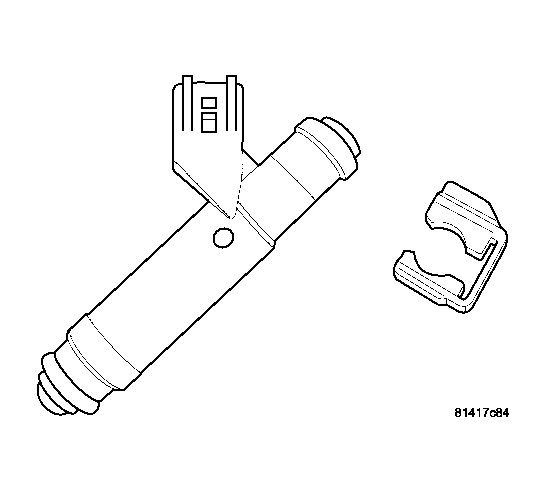

  1. Inspect and replace damaged fuel injector O-rings. See Fig 1.
    Fig 1: Fuel Injector And Clip
    GC0000414Courtesy of DAIMLERCHRYSLER CORP.
  2. Lightly lubricate the fuel injector O-rings with a couple drops of clean engine oil.

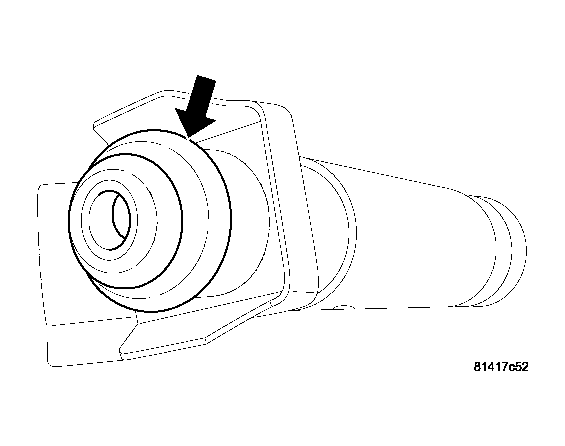

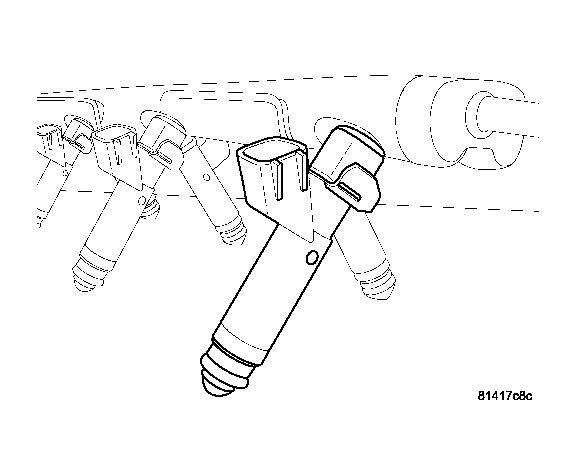

  3. Install retaining clips on fuel injectors. See Fig 2.
    Fig 2: Fuel Injector O-Ring
    GC0000403Courtesy of DAIMLERCHRYSLER CORP.

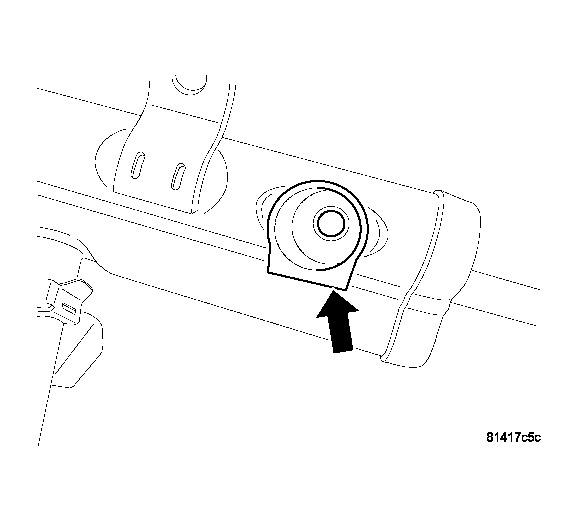

  4. Fuel injector locator flange on fuel rail. See Fig 3.
    Fig 3: Fuel Rail Locator Tabs
    GC0000413Courtesy of DAIMLERCHRYSLER CORP.
  5. Push injectors into fuel injector rail until clips are in the correct position. See Fig 4.
    Fig 4: Installing Fuel Injector
    GC0000405Courtesy of DAIMLERCHRYSLER CORP.
  6. Fuel injector installed into fuel rail in the correct position. See Fig 5.
    Fig 5: Fuel Injector Clip
    GC0000412Courtesy of DAIMLERCHRYSLER CORP.
  7. Fuel rail with injectors installed. See Fig 6.
    Fig 6: Fuel Injectors Installed
    GC0000404Courtesy of DAIMLERCHRYSLER CORP.

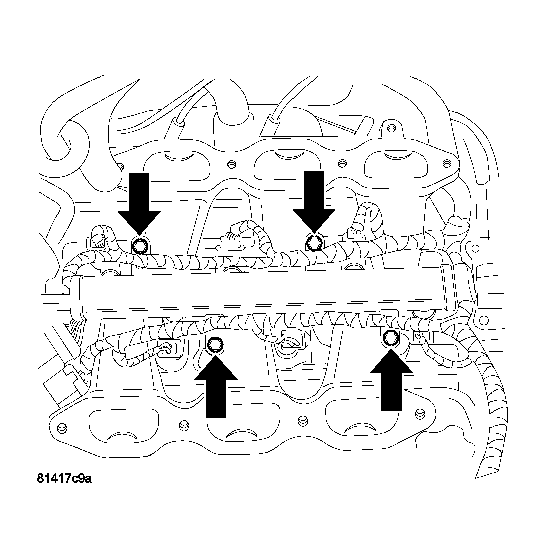

  8. Position fuel rail over cylinder heads, and push rail into place. See Fig 7. Tighten fuel rail mounting bolts to 28 N.m (250 in. lbs.) torque.
    Fig 7: Fuel Rail Bolts Locations
    GC0000416Courtesy of DAIMLERCHRYSLER CORP.

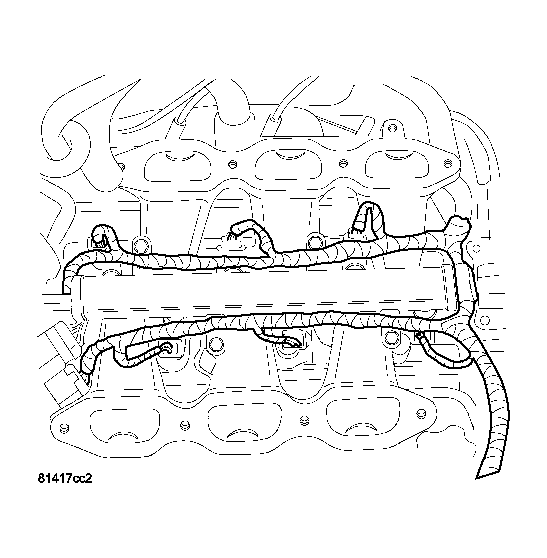

  9. Connect the electrical connectors to the fuel injectors and lock. See Figure.
    Fig 8: Fuel Injector Wiring Harness
    GC0000417Courtesy of DAIMLERCHRYSLER CORP.

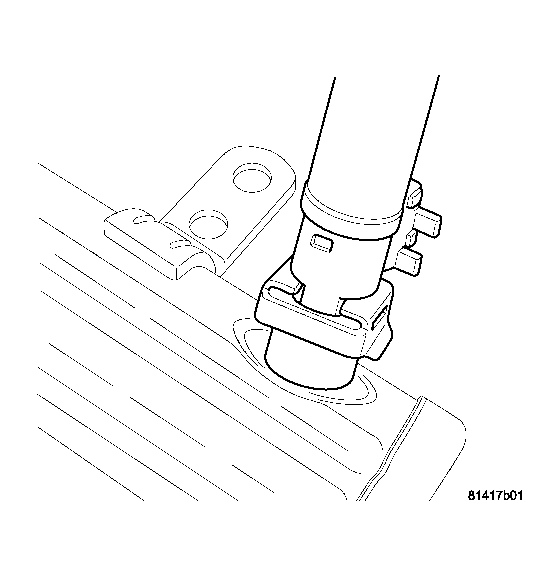

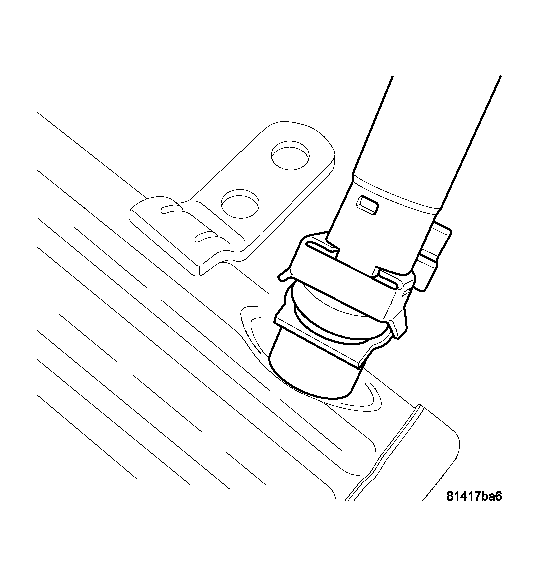

  10. Connect the fuel supply tube quick connect fitting to the fuel rail. See Fig 9.
    Fig 9: Fuel Line Disconnect Fitting
    GC0000407Courtesy of DAIMLERCHRYSLER CORP.

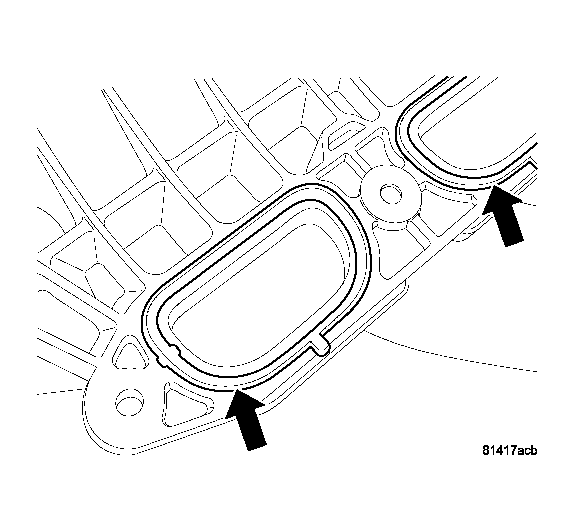

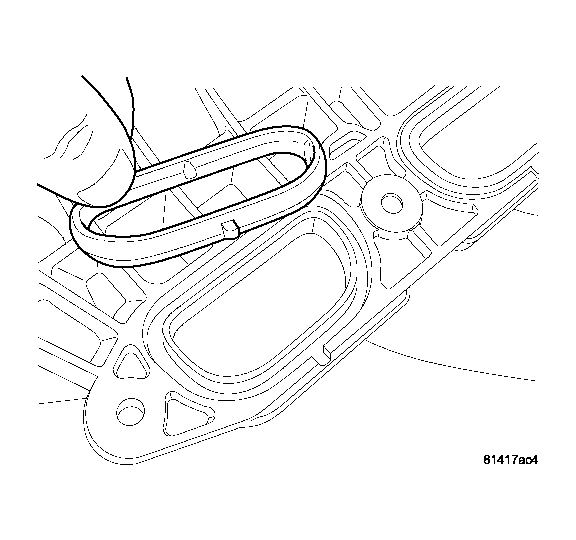

  11. Inspect the intake manifold gaskets. See Fig 10.
    Fig 10: Intake Gaskets Removed
    GC0000409Courtesy of DAIMLERCHRYSLER CORP.
  12. Intake manifold gaskets installed. See Fig 11.
    Fig 11: Intake Gasket Installed
    GC0000410Courtesy of DAIMLERCHRYSLER CORP.

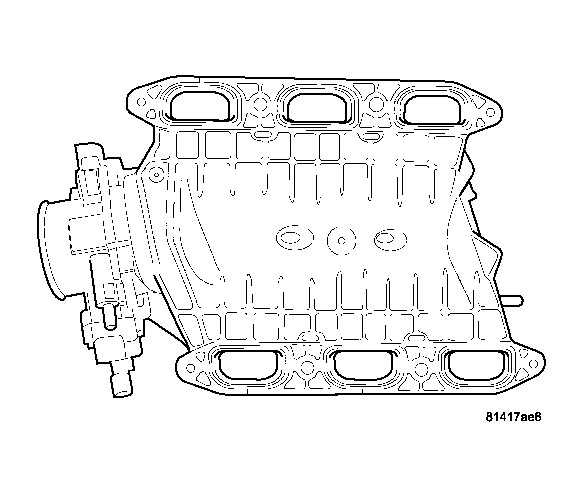

  13. Install intake manifold plenum. See Fig 12, (Refer to INTAKE MANIFOLD ).
    Fig 12: Intake Manifold Removed
    GC0000411Courtesy of DAIMLERCHRYSLER CORP.
  14. Connect and lock the electrical for the MAP sensor (1).
  15. Connect the vacuum lines (2). See Figure.
    Fig 13: MAP Sensor
    GC0000418Courtesy of DAIMLERCHRYSLER CORP.
    1 - MAP Sensor
    2 - Vacuum Lines
  16. Connect the electrical connector for Throttle Position Sensor (2), Idle Air Control Motor (3). See Figure.
    Fig 14: Throttle Body
    GC0000419Courtesy of DAIMLERCHRYSLER CORP.
    1 - Purge Line
    2 - Throttle Position Sensor
    3 - Idle Air Control Motor

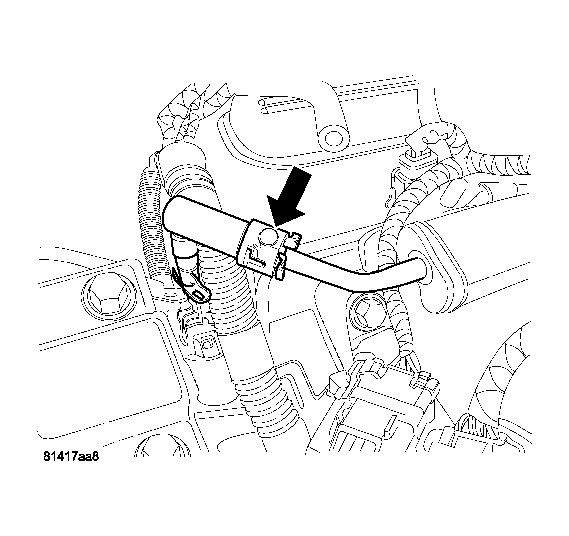

  17. Connect the purge line (1).
  18. Connect negative cable to battery.
