Idle Air Control Motor: Installation: 3.5L

When servicing throttle body components, always reassemble components with new O-rings and seals where applicable. If assembly of component is difficult, a light coat of engine oil may be applied to the O-RINGS ONLY. See  Fig 1  to aid assembly.

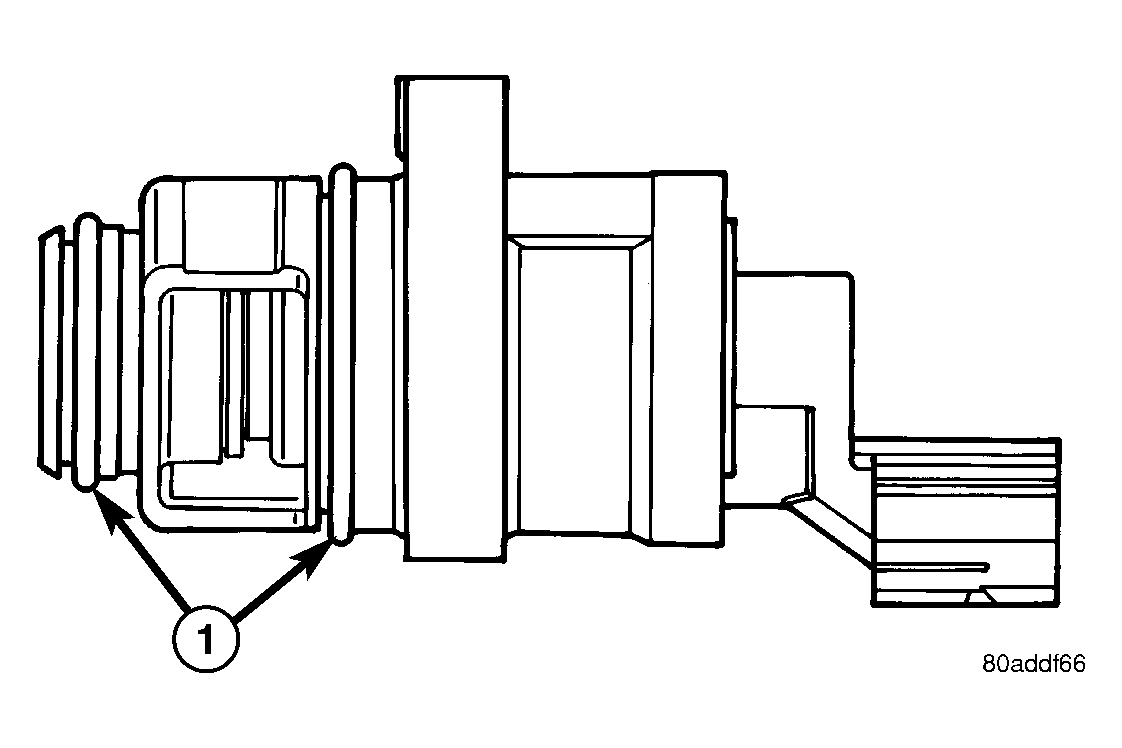

Fig 1: O-Rings

Courtesy of DAIMLERCHRYSLER CORP.

1. Install the IAC to the throttle body. See Fig 2.

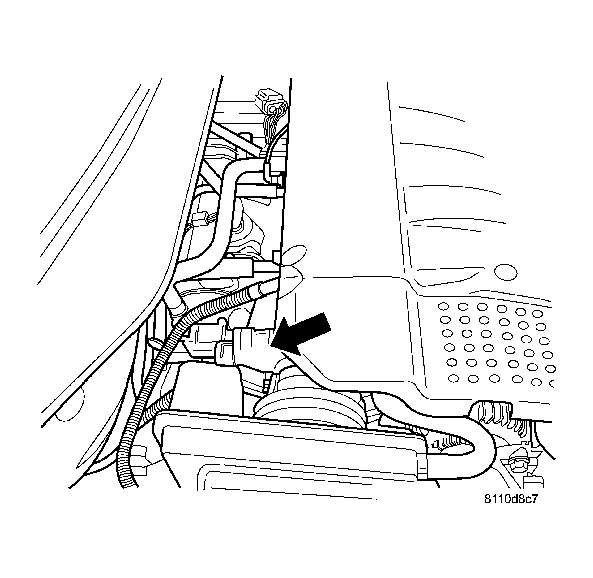

   Fig 2: Idle Air Control Motor

   Courtesy of DAIMLERCHRYSLER CORP.
2. Tighten mounting screw to 5.5 N.m (49 in. lbs.) torque.
3. Attach electrical connector to the IAC.
4. Connect the negative battery cable.
