Intake Air Temperature Sensor: Installation

  1. Install sensor into inlet hose.

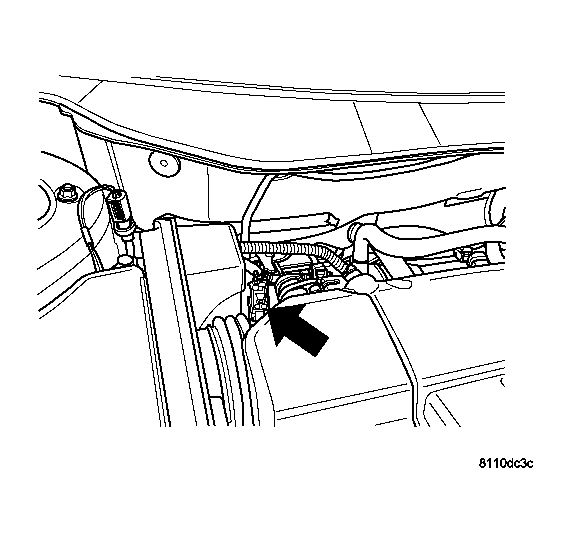

  2. Connect and lock the electrical connector. See Figure.
  3. Connect the negative battery cable.
