Map Sensor: Removal: 3.5L

  1. Remove the negative battery cable.
  2. Disconnect the electrical connector from the MAP sensor. See Fig 1.

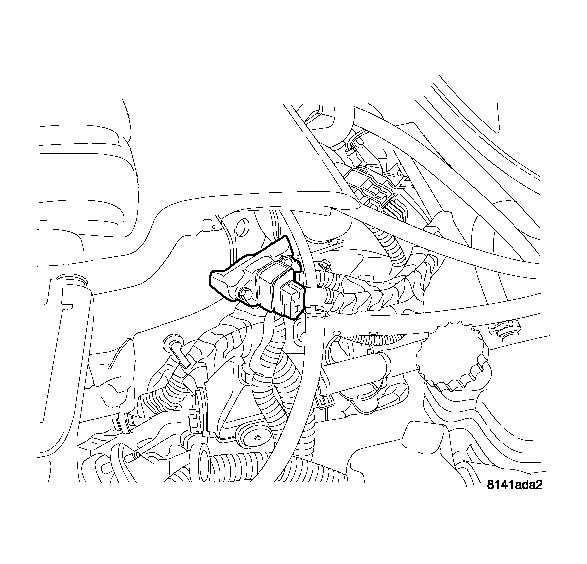

    Fig 1: MAP Sensor Location
    GC0000460Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove bolt from sensor.
  4. Remove sensor. See Fig 2.

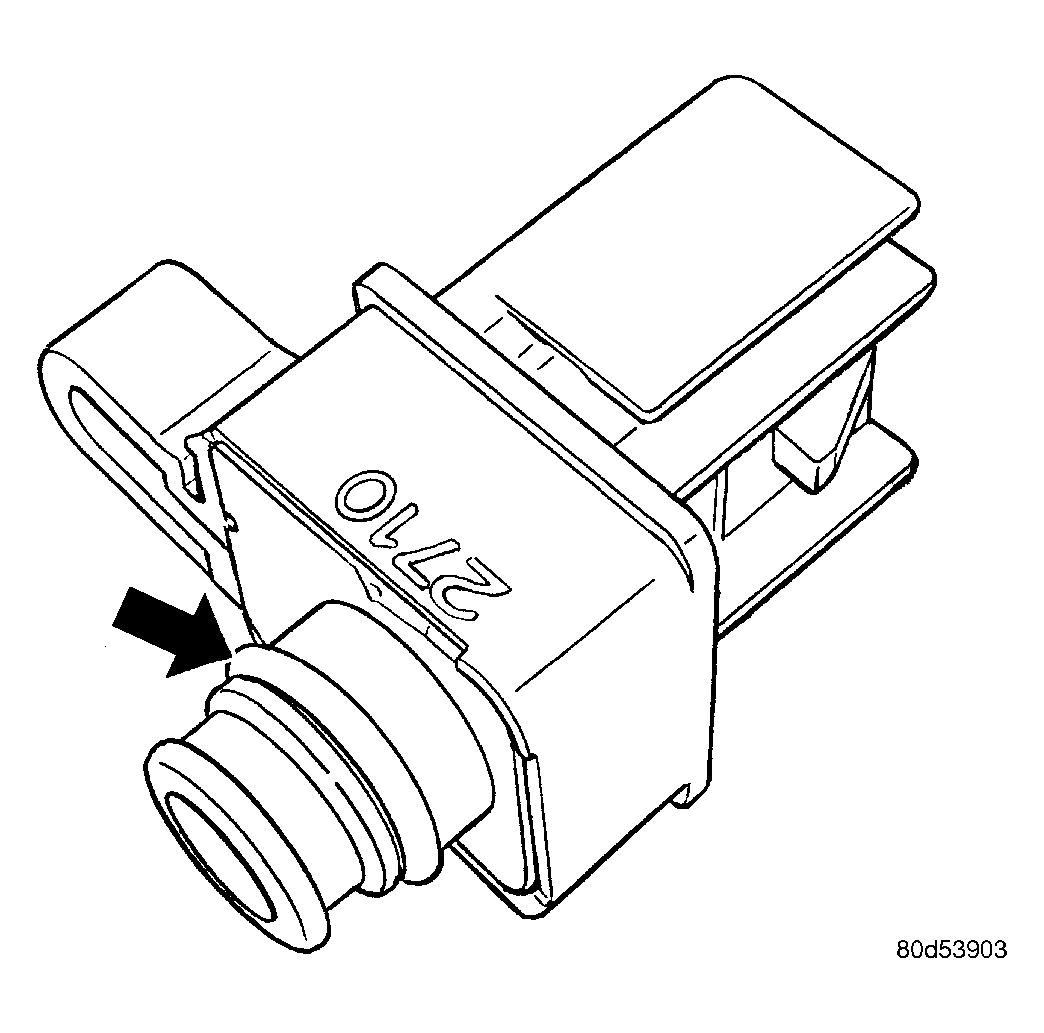

    Fig 2: MAP Sensor O-Ring
    GC0000459Courtesy of DAIMLERCHRYSLER CORP.
