Map Sensor: Removal: 3.8L

  1. Disconnect negative battery cable.
  2. Unlock and disconnect electrical connector. See Fig 1.

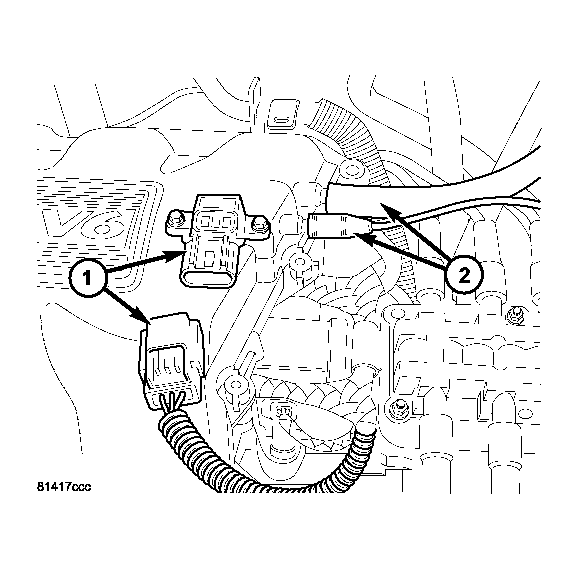

    Fig 1: MAP Sensor
    GC0000418Courtesy of DAIMLERCHRYSLER CORP.
    1 - MAP Sensor
    2 - Vacuum Lines
  3. Remove 2 mounting screws.
  4. Remove sensor.
