3.8L - Lower O2 Sensor

The engines uses two heated oxygen sensors.

CAUTION: When disconnecting the sensor electrical connector, do not pull directly on wire going into sensor.

Disconnect negative battery cable.
Raise and support vehicle.
Disconnect the electrical connector.
Use a socket such as Snap-On YA8875 or a crow foot wrench to remove oxygen sensor. See Fig 1.

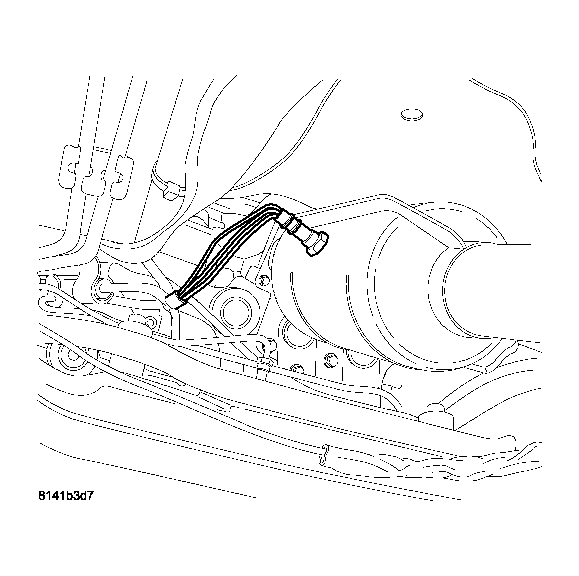

Fig 1: Lower O2 Location
Courtesy of DAIMLERCHRYSLER CORP.
