Throttle Body: Installation: 3.8L

Inspect and replace throttle body gasket if necessary.
Install throttle body gasket. See Fig 1.

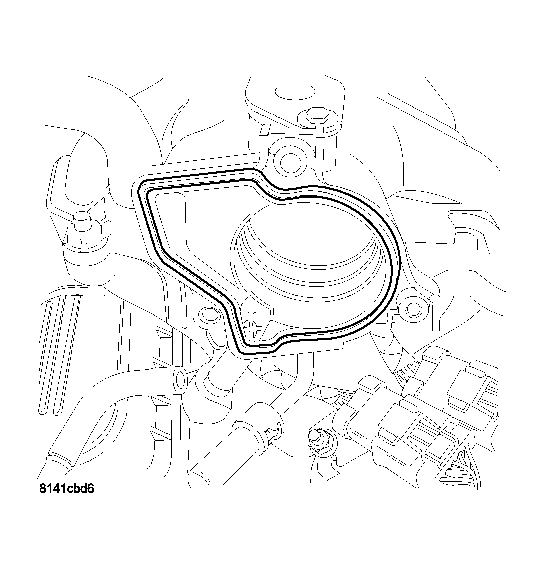

Fig 1: Throttle Body Removed
Courtesy of DAIMLERCHRYSLER CORP.
Install throttle body. See Fig 2.

Fig 2: Throttle Body Attachment
Courtesy of DAIMLERCHRYSLER CORP.
Install 3 throttle body bolts and tighten.

Connect electrical connectors and purge line to throttle body. See Fig 3.

Fig 3: Throttle Body

Courtesy of DAIMLERCHRYSLER CORP.

1 - Purge Line

2 - Throttle Position Sensor

3 - Idle Air Control Motor

Hold throttle lever in wide open position. Install throttle cable and speed control cables to throttle arm. See Fig 4.

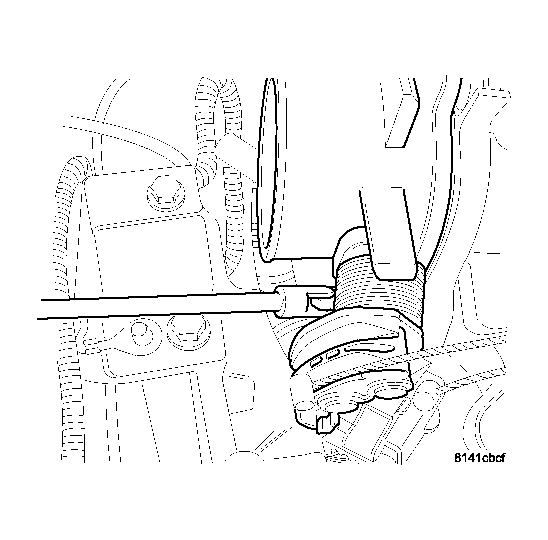

Fig 4: Cable At Throttle Body
Courtesy of DAIMLERCHRYSLER CORP.
Install the air cleaner box,
Install the engine cover.
Connect negative cable from battery.
