Camshaft Position Sensor: Installation: 3.5L

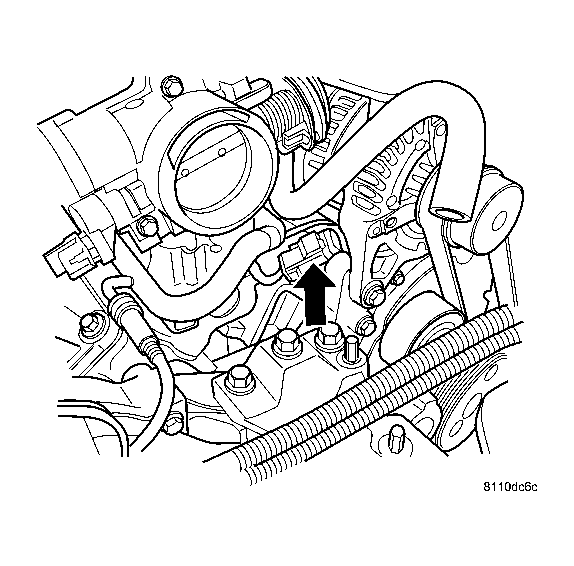

Fig 1: CAM SENSOR LOCATION

GC0002362

Courtesy of DAIMLERCHRYSLER CORP.

Install camshaft sensor. See Fig 1.
Install the mounting bolts and tighten, refer to the TORQUE chart for value.
Install and lock the camshaft sensor electrical connector.
Install air cleaner box.
Connect the negative battery cable.
