Camshaft Position Sensor: Removal: 3.8L

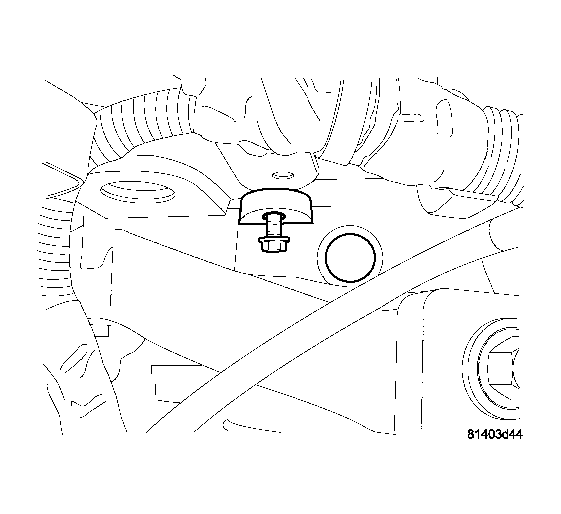

Fig 1: MOUNTING BOLT LOOSE

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect the negative battery cable.
Unlock the camshaft sensor electrical connector.
Disconnect the electrical connectors to the camshaft sensor. See Fig 1.

Fig 2: CAMSHAFT POSITION SENSOR LOCATION
Courtesy of DAIMLERCHRYSLER CORP.
Loosen the mounting bolts. See Fig 2.

Fig 3: SENSOR REMOVED
Courtesy of DAIMLERCHRYSLER CORP.
Remove camshaft sensor. See Fig 3.

Fig 4: CAMSHAFT POSITION SENSOR
Courtesy of DAIMLERCHRYSLER CORP.
Camshaft Position Sensor removed. See Fig 4.
