Ignition Coil: Installation: 3.8L

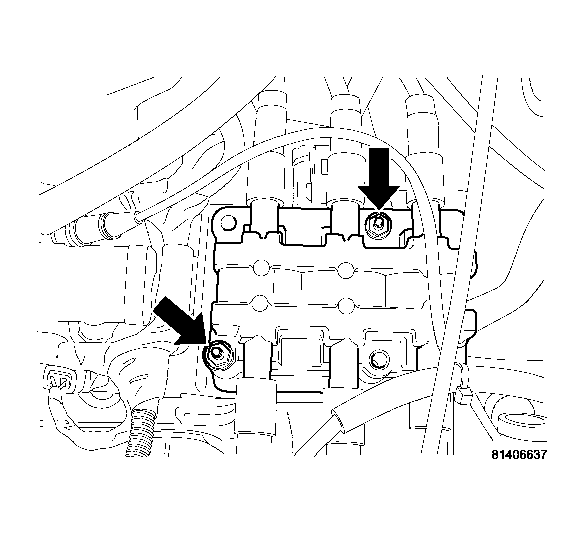

Fig 1: IGNITION COIL
GC0002369Courtesy of DAIMLERCHRYSLER CORP.
  1. Install ignition coil over mounting studs. See Fig 1
  2. Connect and lock the electrical connector to ignition coil.
  3. Install mounting nuts and tighten to N.m 11.5 ( 105 in. lbs.).
  4. Install ignition cables to coil assembly.
  5. Connect negative battery cable.
