Knock Sensor: Installation: 3.8L

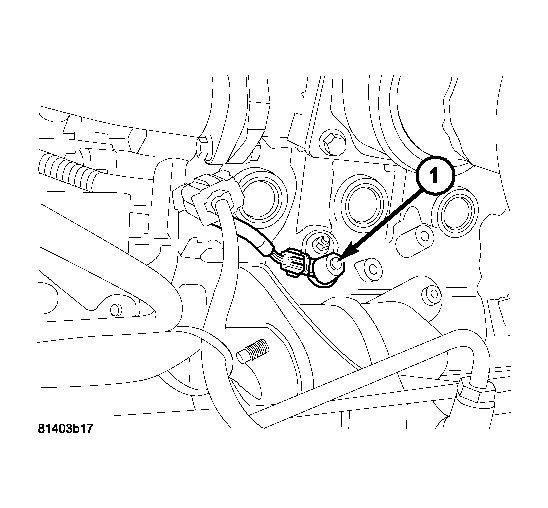

Fig 1: KNOCK SENSOR - 3.8L
GC0002375Courtesy of DAIMLERCHRYSLER CORP.
1 - KNOCK SENSOR
  1. Install knock sensor. Tighten knock sensor to 20 N.m (15.2 in. lbs.) torque (1). See Fig 1. Over or under tightening effects knock sensor performance, possibly causing improper spark control.
  2. Route the knock sensor wire in the proper location. See Fig 1.
  3. Connect the electrical connector.
  4. Lower vehicle.
  5. Connect the negative battery cable.
