Knock Sensor: Removal: 3.5L

Fig 1: KNOCK SENSOR CONNECTOR

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect the negative battery cable.
Remove the upper intake manifold. Refer to REMOVAL - UPPER INTAKE MANIFOLD .
Disconnect the electrical connector. See Fig 1.

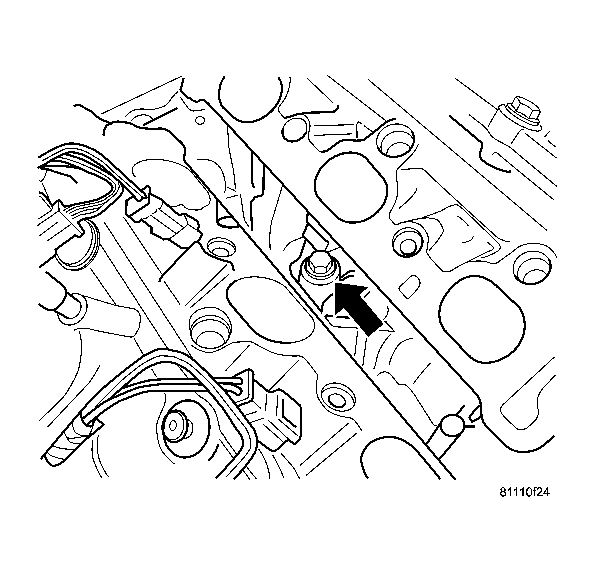

Fig 2: KNOCK SENSOR LOCATION
Courtesy of DAIMLERCHRYSLER CORP.
Remove the knock sensor. See Fig 2.
