EVAP/Purge Solenoid: Installation

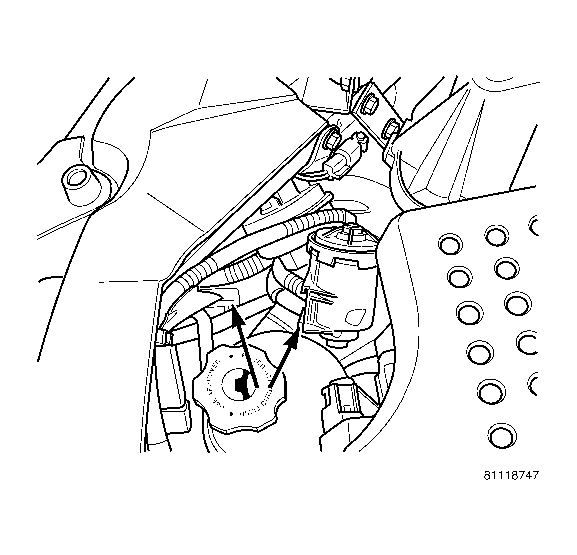

Fig 1: PURGE SOLENOID REMOVED
GC0001485Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect the vacuum lines to solenoid. See Fig 1.
  2. Install solenoid to bracket.

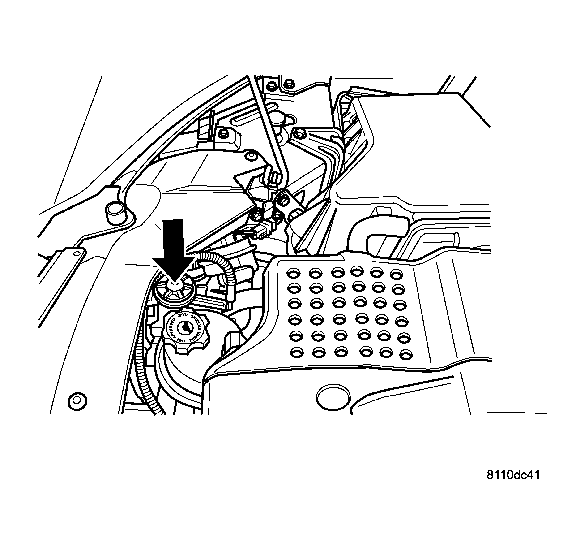

    Fig 2: EVAP PURGE SOLENOID
    GC0001484Courtesy of DAIMLERCHRYSLER CORP.
  3. Connect the electrical connector to the solenoid and lock. See Fig 2.
  4. Connect the negative battery cable.
