Natural Vac Leak Detection ASSY: Installation

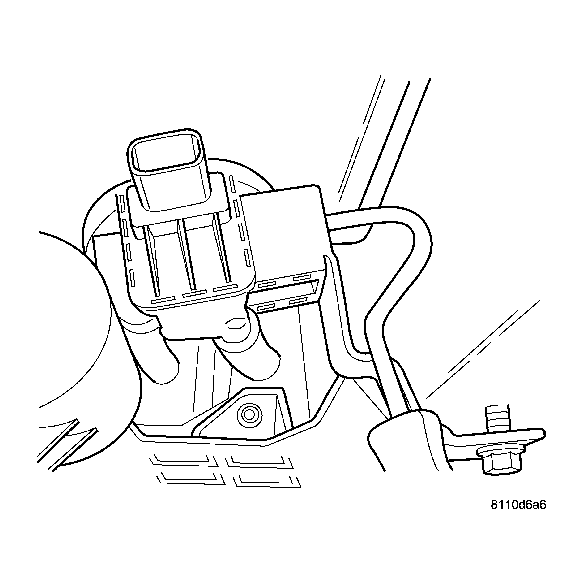

Fig 1: UNLOCKING TAB FOR NVLD
GC0001487Courtesy of DAIMLERCHRYSLER CORP.

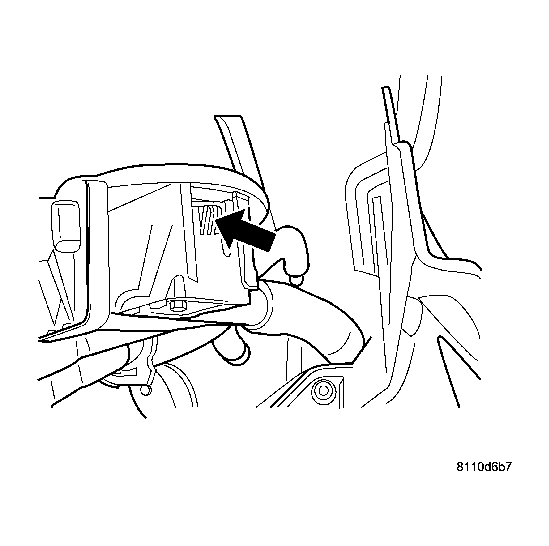

Fig 2: LOCKING TAB
GC0001488Courtesy of DAIMLERCHRYSLER CORP.
  1. Slide. See Fig 1 the Natural Vacuum Leak Detection pump. See Fig 2 onto the bracket and make sure that the tab locks into the bracket.

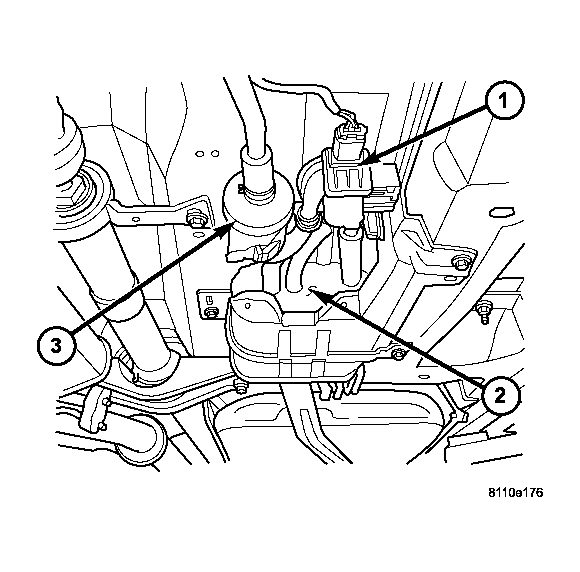

    Fig 3: NVLD/EVAP CANISTER ASSEMBLY
    GC0001489Courtesy of DAIMLERCHRYSLER CORP.
  2. Install hoses and clamps.
  3. Connect the electrical connector. See Fig 3 and lock.
  4. Lower vehicle.
  5. Connect the negative battery cable.
