Natural Vac Leak Detection ASSY: Removal

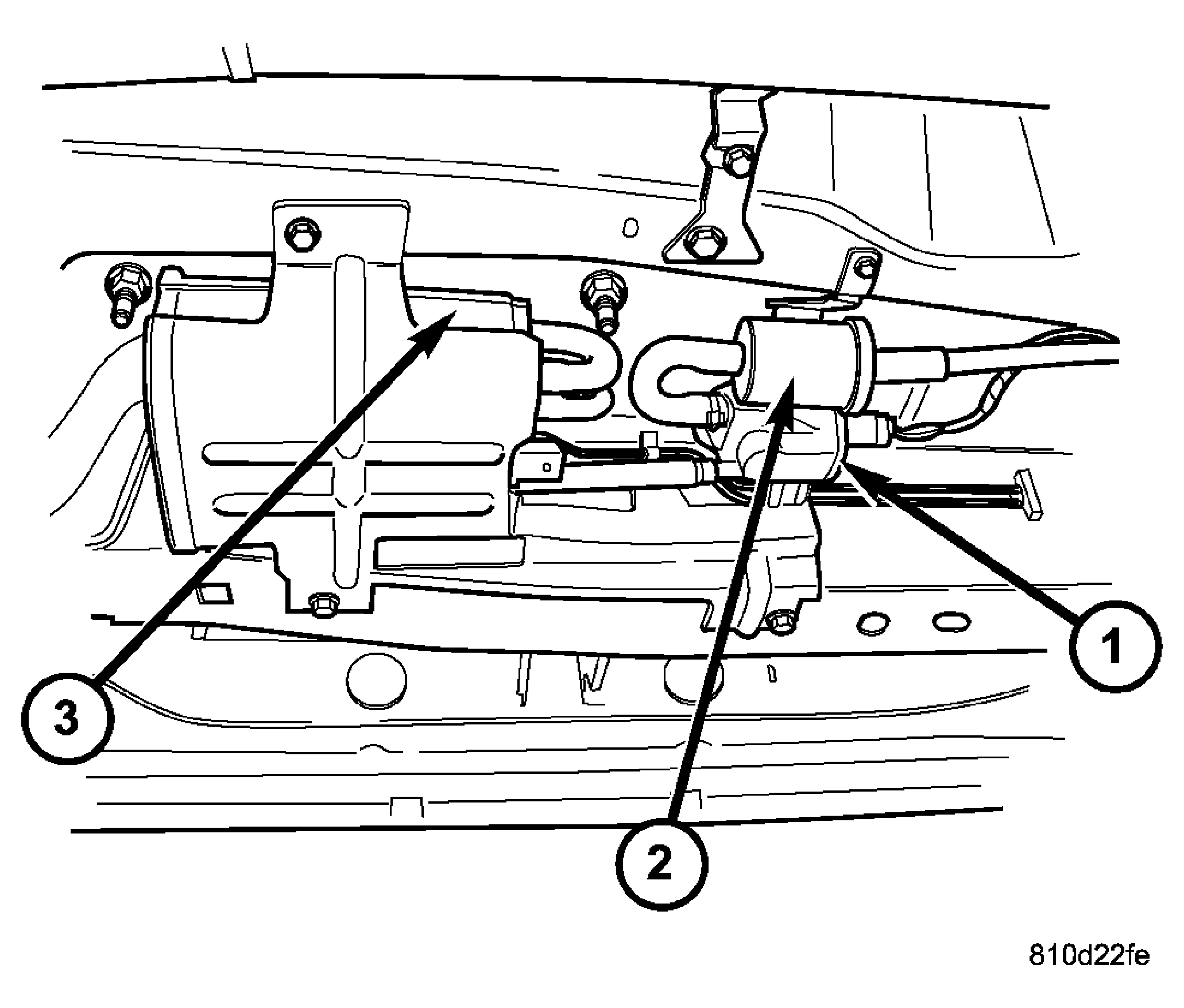

Fig 1: EVAP CANISTER AND NVLD

Courtesy of DAIMLERCHRYSLER CORP.

1 - Natural Vacuum Leak Detection Pump

2 - Pump Filter

3 - EVAP Canister

Disconnect the negative battery cable.
Raise vehicle and support.
Unlock and disconnect the electrical connector. See Fig 1.

Fig 2: UNLOCKING TAB FOR NVLD
Courtesy of DAIMLERCHRYSLER CORP.
Remove clamps and remove hoses.

Fig 3: LOCKING TAB
Courtesy of DAIMLERCHRYSLER CORP.
Press tab. See Fig 3 and release Natural Vacuum Leak Detection pump. See Fig 2.
