PCV Valve: Installation

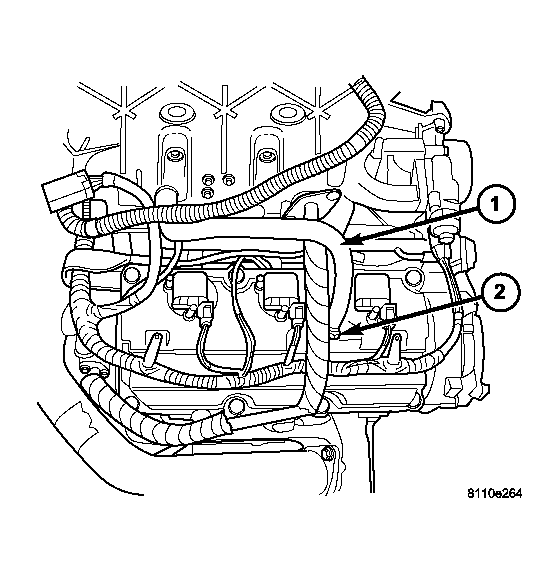

Fig 1: PCV VALVE AND HOSE
GC0001492Courtesy of DAIMLERCHRYSLER CORP.
1 - PCV Hose
2 - PCV valve
  1. Install PCV valve and tighten. See Fig 1.
  2. Install PCV hose.
