Emissions Control System: Tube: Installation: 3.5L

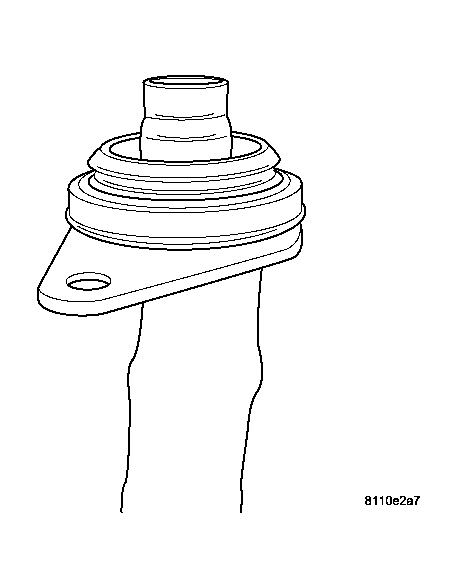

Fig 1: EGR TUBE GASKET

Courtesy of DAIMLERCHRYSLER CORP.

1. Inspect rubber silicone seals on intake manifold end of EGR tube.

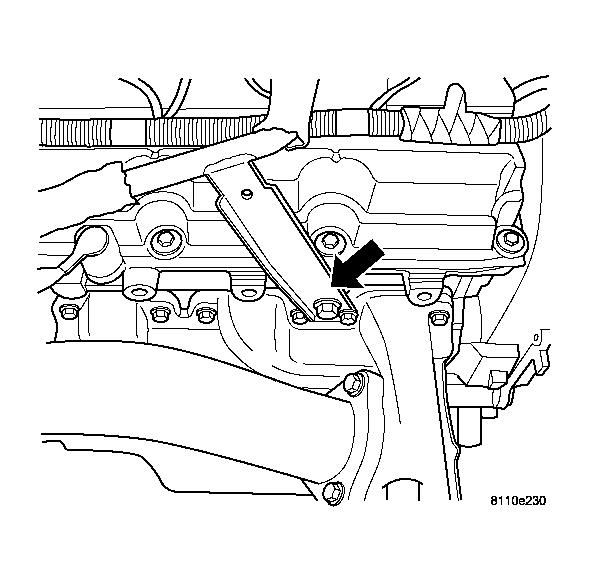

   Fig 2: EGR AT INTAKE MANIFOLD

   Courtesy of DAIMLERCHRYSLER CORP.
2. Install upper tube into the intake manifold. See Fig 2, being careful that the silicone rubber seals are correctly installed and undamaged. See Fig 1.
3. Tighten the EGR upper tube to EGR valve bolts to 11.3 N.m (100 in. lbs.) torque. See Figure.

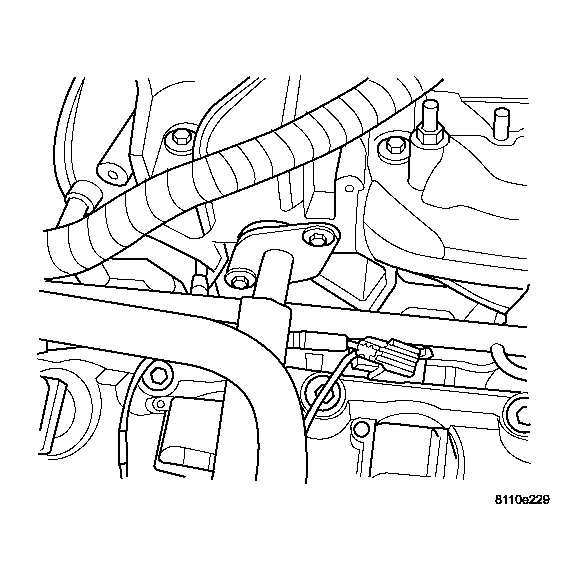

   Fig 3: TUBE BRACKET

   Courtesy of DAIMLERCHRYSLER CORP.
4. Install the EGR tube bracket bolt and tighten. See Fig 3.
