Emissions Control System: Tube: Installation: 3.8L

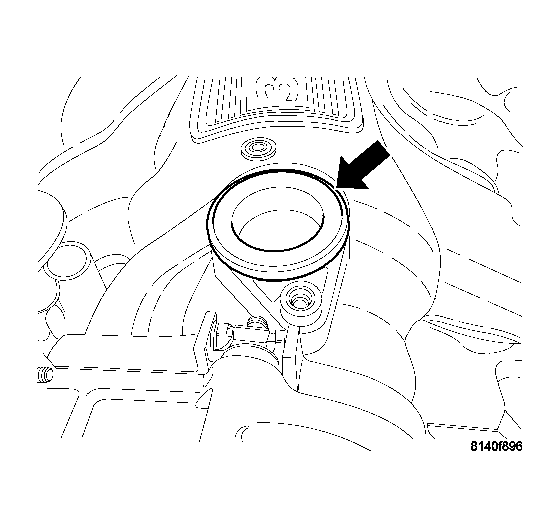

Fig 1: GASKET PROFILE

Courtesy of DAIMLERCHRYSLER CORP.

1. Inspect rubber silicone seals on intake manifold end of EGR tube. See Fig 1.

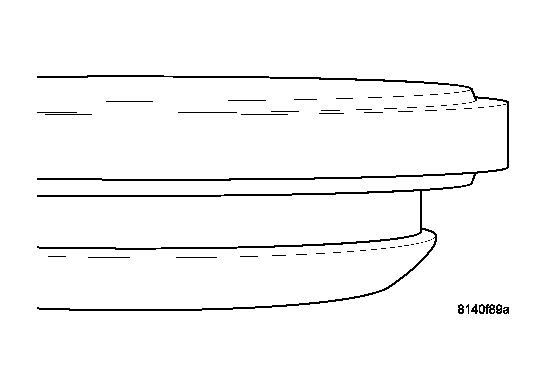

   Fig 2: INTAKE GASKET

   Courtesy of DAIMLERCHRYSLER CORP.
2. Install upper tube into the intake manifold. See Fig 2, being careful that the silicone rubber seals are correctly installed and undamaged.

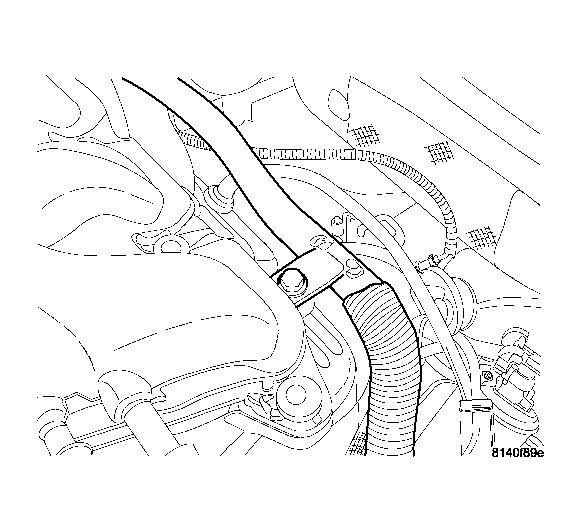

   Fig 3: EGR TUBE AT INTAKE MANIFOLD

   Courtesy of DAIMLERCHRYSLER CORP.
3. Tighten the tube to intake manifold bolts to 5.6 N.m (50 in. lbs.) torque
4. Install bracket and screws. See Fig 3.

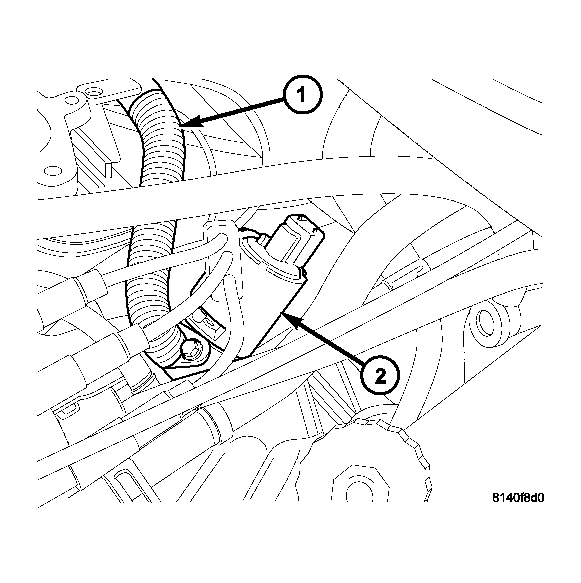

   Fig 4: EGR VALVE LOCATION & TUBE

   Courtesy of DAIMLERCHRYSLER CORP.
5. Tighten the EGR upper tube to EGR valve bolts to 11.3 N.m (100 in. lbs.) torque. See Fig 4.
   Fig 5: EGR TUBE BRACKET

   Courtesy of DAIMLERCHRYSLER CORP.
6. Tighten tube bracket bolts to 5.6 N.m (50 in. lbs.) torque. See Fig 5.
