Emissions Control System: Valve: Removal: 3.8L

Fig 1: EGR VALVE LOCATION & TUBE

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect negative battery cable.
Unlock and disconnect the electrical connector from the EGR valve. See Fig 1.

Fig 2: EGR TUBE BRACKET
Courtesy of DAIMLERCHRYSLER CORP.
Remove EGR tube bracket bolt. See Fig 2.

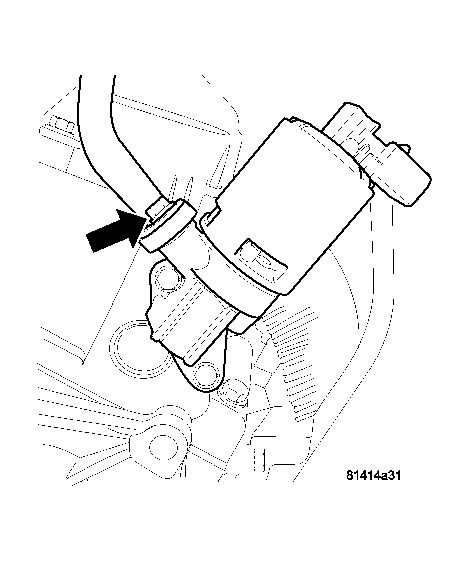

Fig 3: EGR VALVE MOUNTED
Courtesy of DAIMLERCHRYSLER CORP.
Remove the 2 EGR tube bolts. See Fig 3.

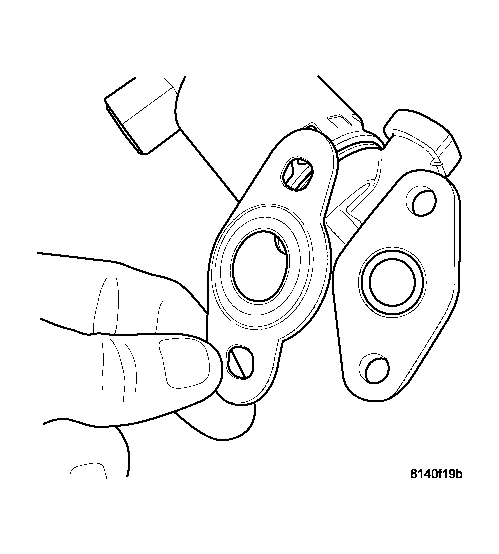

Fig 4: EGR VALVE GASKET
Courtesy of DAIMLERCHRYSLER CORP.
Remove the 2 mounting bolts for the EGR valve and gasket. See Fig 4.
