Control And Solenoids

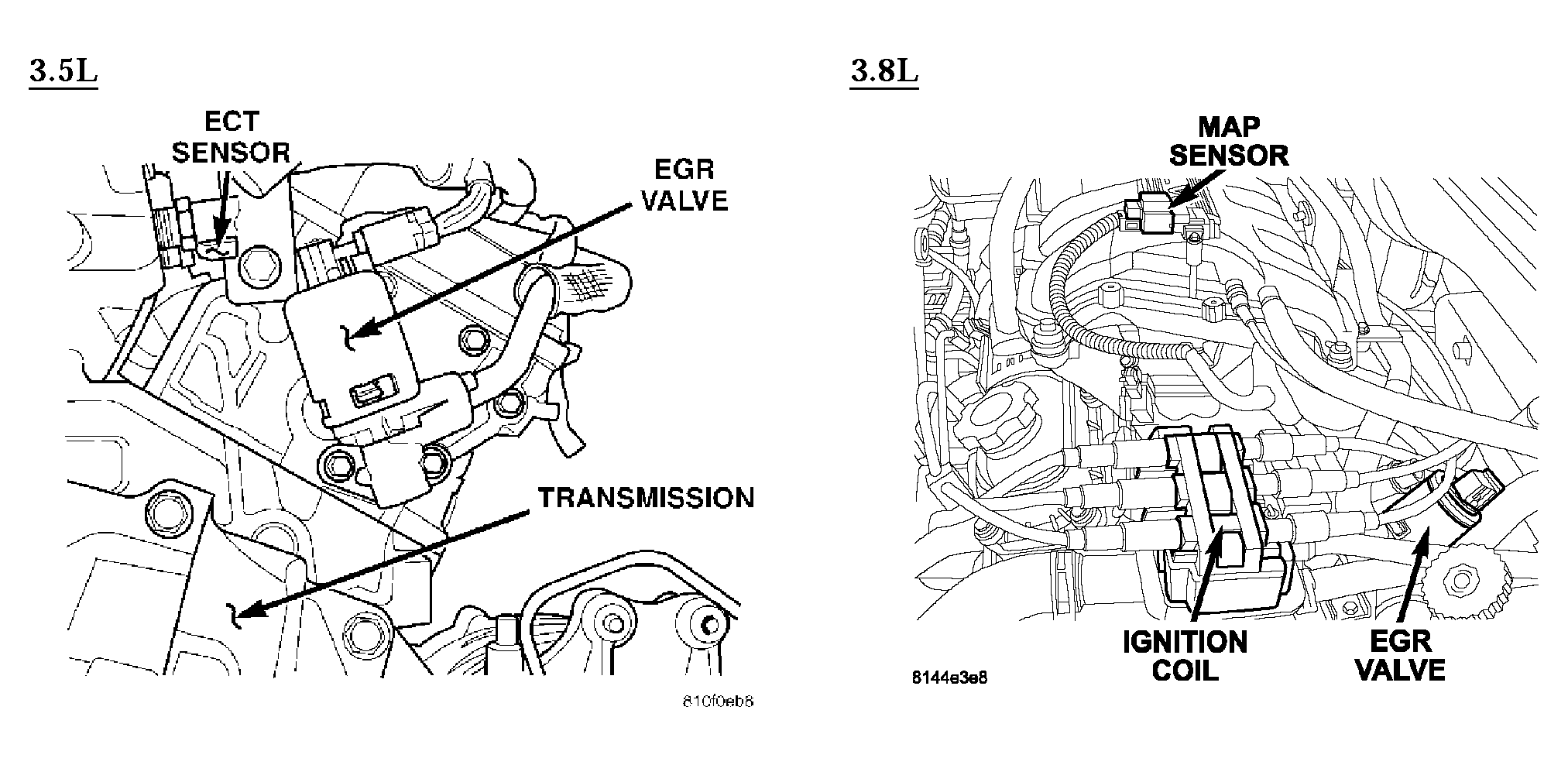

Fig 1: Identifying Control And Solenoids Component Locations (1 Of 2)
G04528079Courtesy of DAIMLERCHRYSLER CORP.

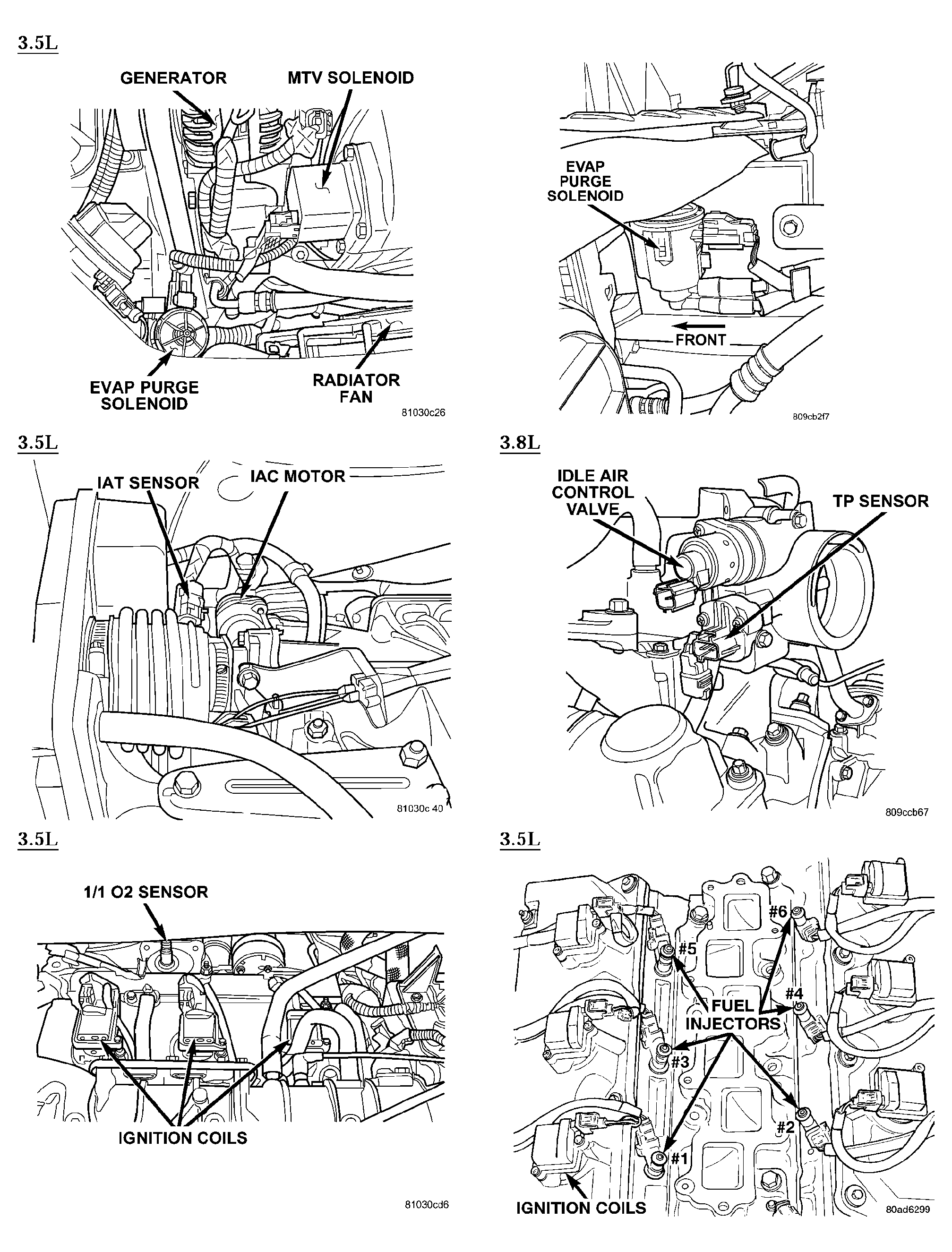

Fig 2: Identifying Control And Solenoids Component Locations (2 Of 2)
G04528080Courtesy of DAIMLERCHRYSLER CORP.
