SKREEM Module - Black 6 Way

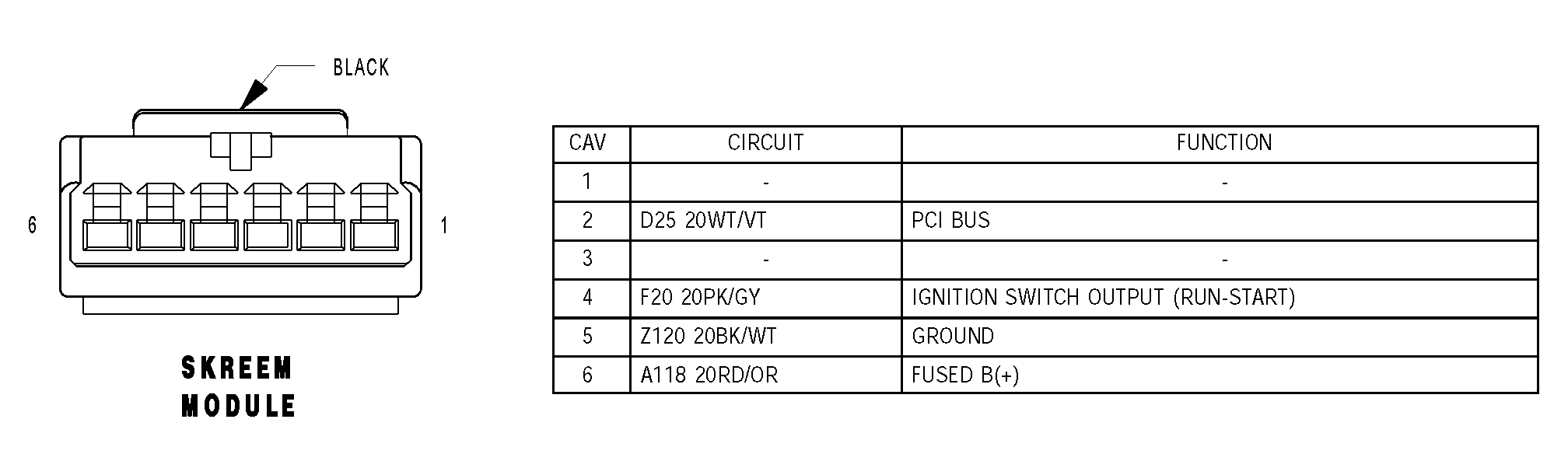

Fig 1: Identifying Scream Module Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
