Speed Control Switch-Left - Black 3 Way

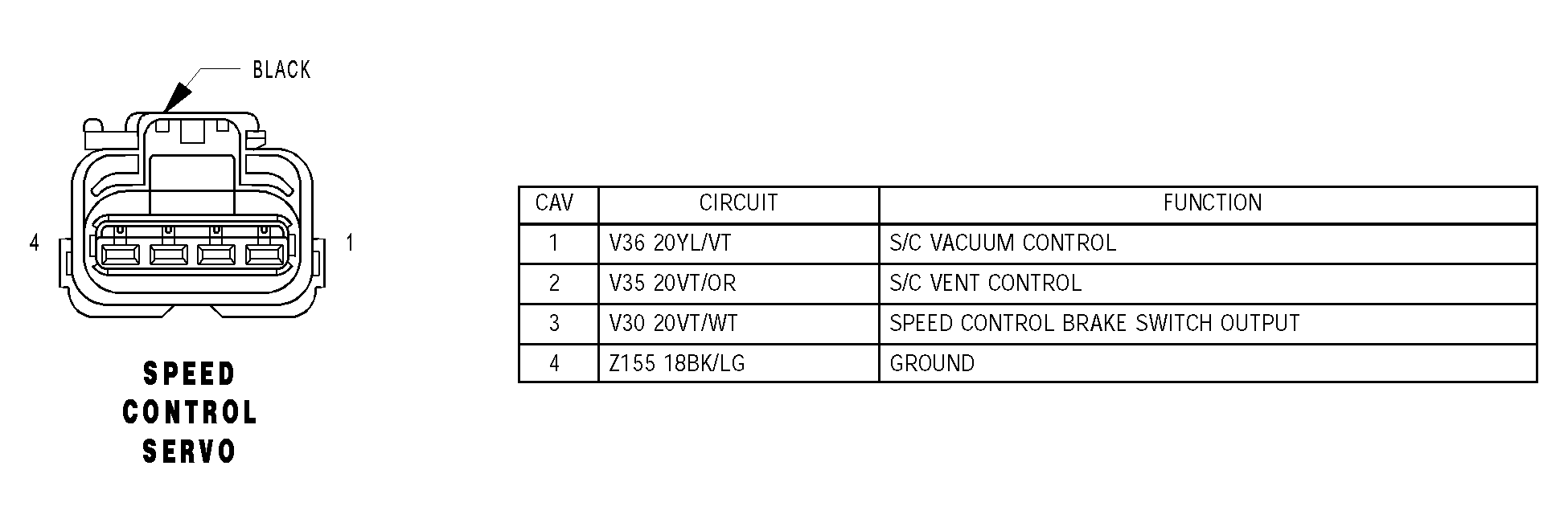

Fig 1: Identifying Speed Control Servo Connector Pinouts
G04528130Courtesy of DAIMLERCHRYSLER CORP.


Fig 1: Identifying Speed Control Switch-Left Connector Pinouts
G04528131Courtesy of DAIMLERCHRYSLER CORP.
