Throttle Position Sensor - Gray 3 Way
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Throttle Position Sensor - Gray 3 Way

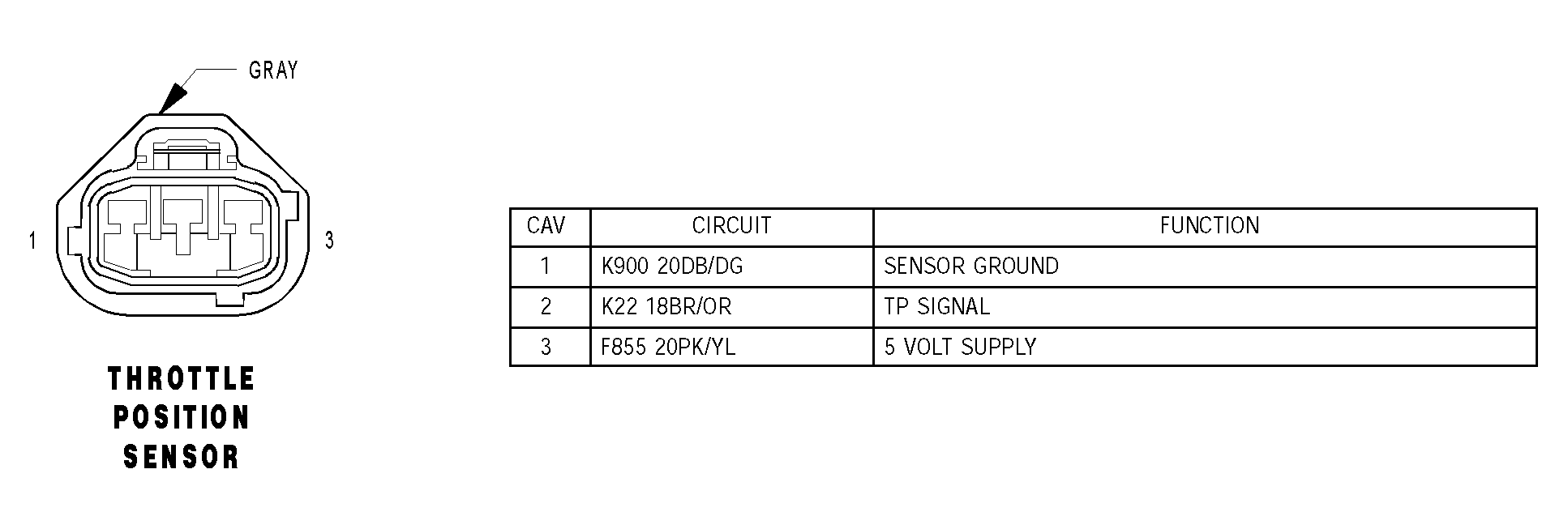

Fig 1: Identifying Throttle Position Sensor Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
