Spark Plug: Installation: 3.5L
Courtesy of DAIMLERCHRYSLER CORP.
- To avoid cross threading, start the spark plug into the cylinder head by hand.

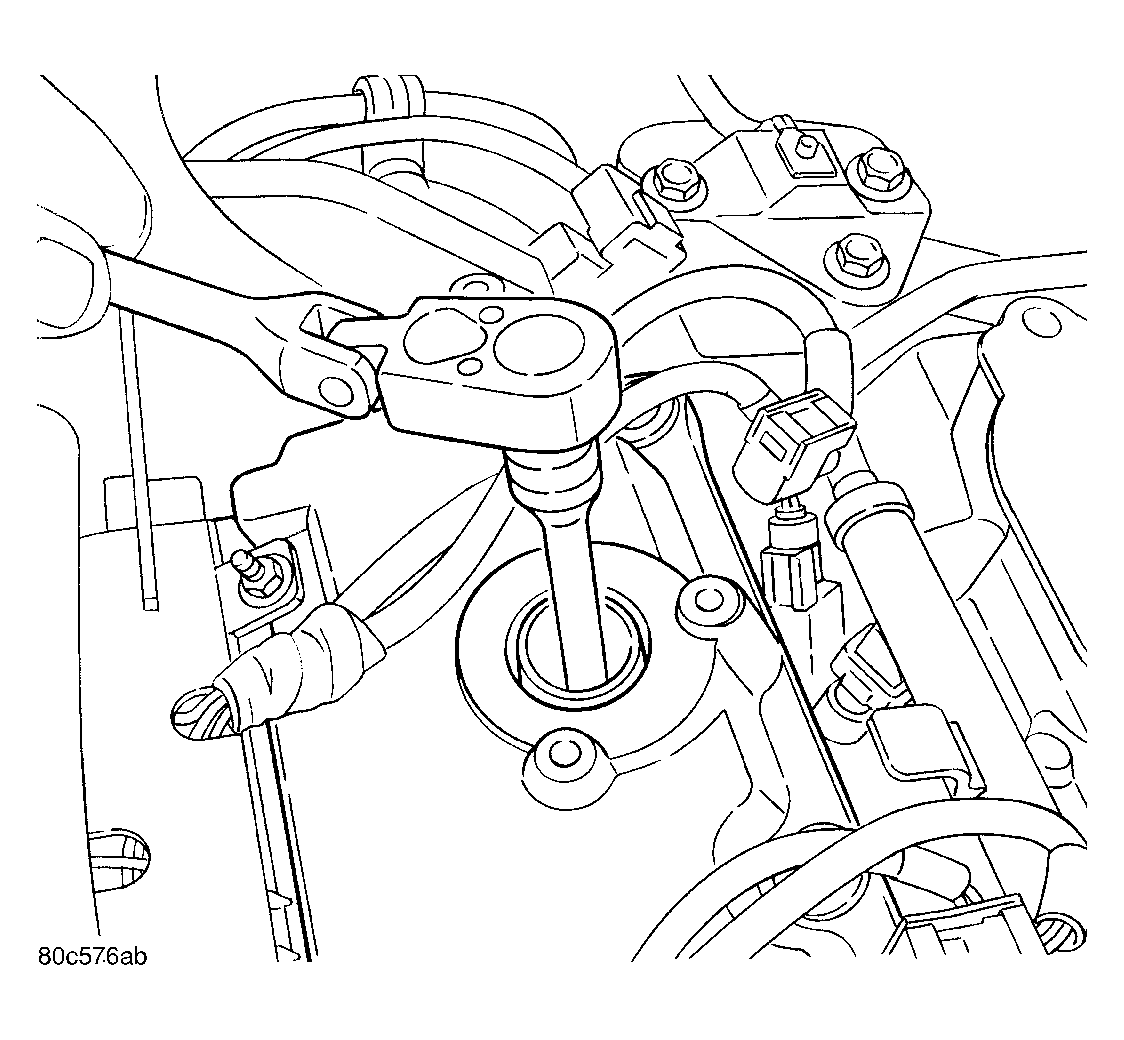

- Tighten spark plugs to 17 N.m (13 ft. lbs.). See Fig 1.
Courtesy of DAIMLERCHRYSLER CORP.

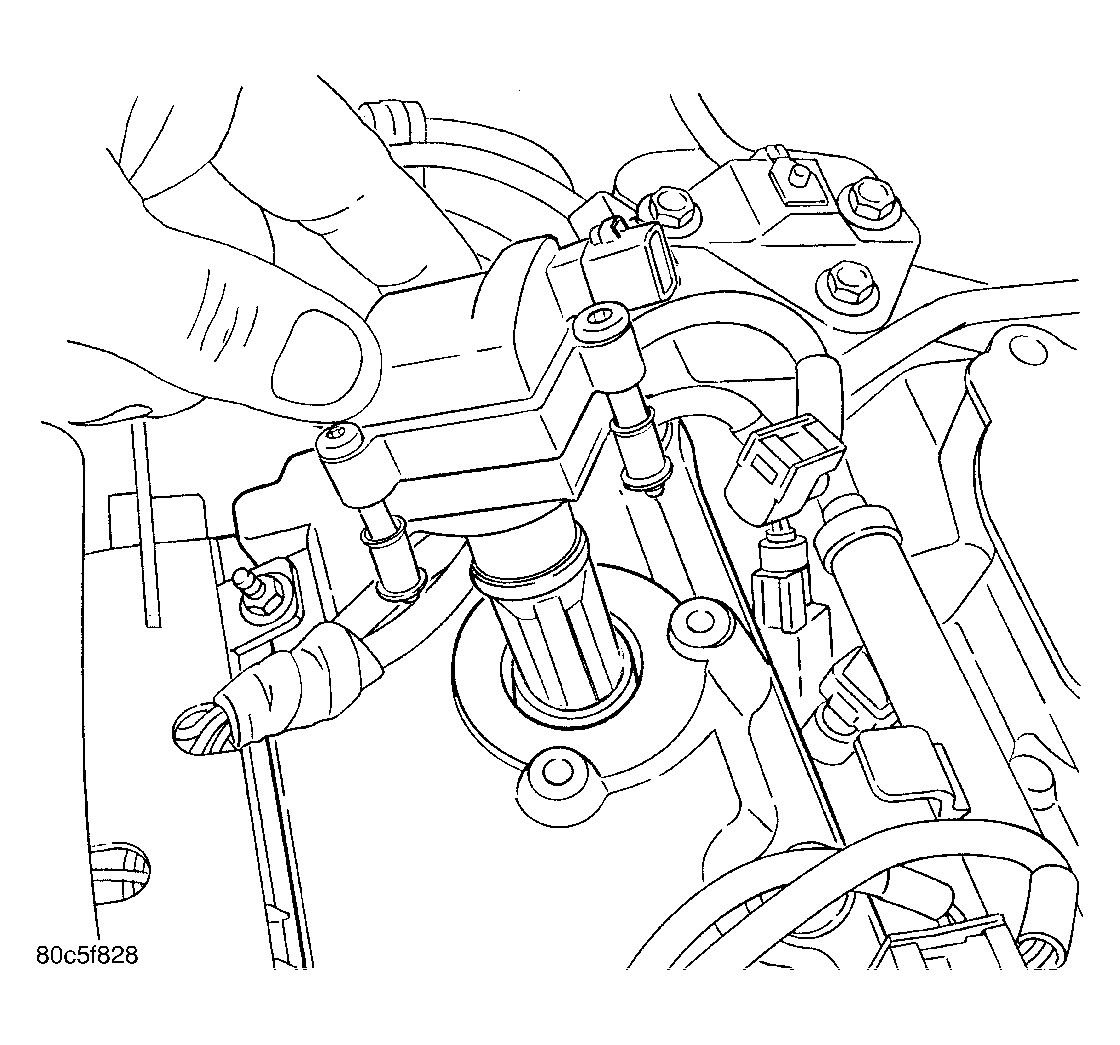

- Install ignition coil assembly onto spark plug. See Fig 2.
- Hand tighten coil screws and tighten to 6.7 N.m (60 in. lbs.).
- Connect and lock the electrical connector.
- Front Plugs -
Install the intake manifold. Refer to INTAKE MANIFOLD
.
- Connect the negative battery cable.
