Sensor-Intake Air Temperature: Installation

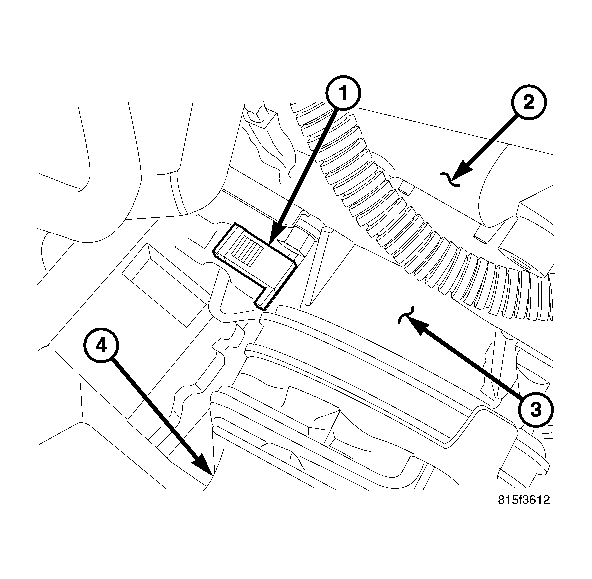

Fig 1: Identifying Intake Air Temperature Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1 - INTAKE AIR TEMPERATURE SENSOR

2 - AIR CONTROL VALVE

3 - AIR CONTROL VALVE EXTENSION

4 - LOWER CHARGE AIR HOSE

Position the intake air temperature sensor along side of the air control valve extension (3) access hole.
Press together the sensor (1) locking tabs, seat the sensor (1) to the extension (3) and release tabs. See Fig 1.
Connect negative battery cable.
