Ignition System (Service Information): Coil-Ignition: Installation: 5.7/6.1L

Fig 1: Removing/Installing Ignition Coil

Courtesy of DAIMLERCHRYSLER CORP.

1. Before installing coil(s), apply dielectric grease to inside of spark plug boots (1).

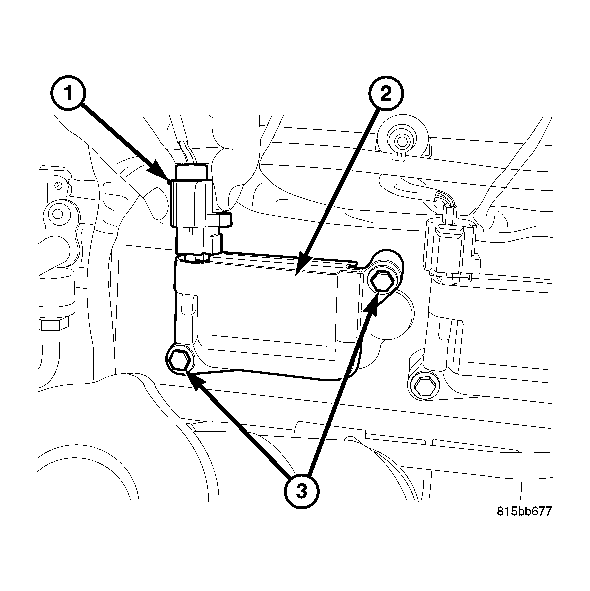

   Fig 2: Ignition Coil Mounting Bolts - 5.7L/6.1L

   Courtesy of DAIMLERCHRYSLER CORP.
2. Position ignition coil into valve cover and push both spark plug boots onto each spark plug.
3. Install two coil mounting bolts (3) and tighten to 12 N.m (105 in. lbs.).
4. Connect electrical connector (1) to coil and lock connector.
