PCV Valve: Removal: 5.7L

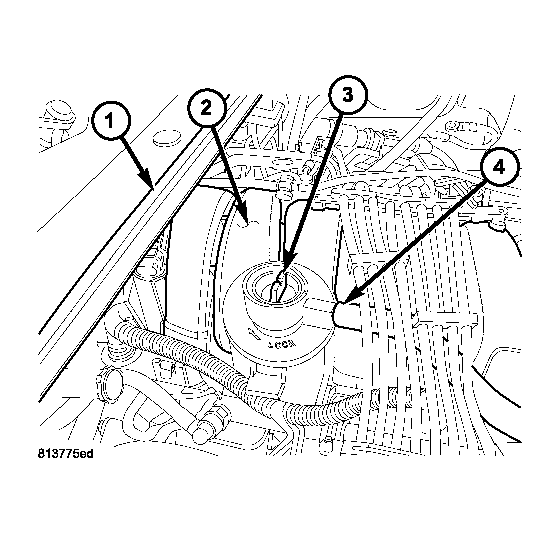

Fig 1: Location Of PCV Valve - 5.7L

Courtesy of DAIMLERCHRYSLER CORP.

The PCV valve (3) is mounted into the top/right side of the intake manifold (2).

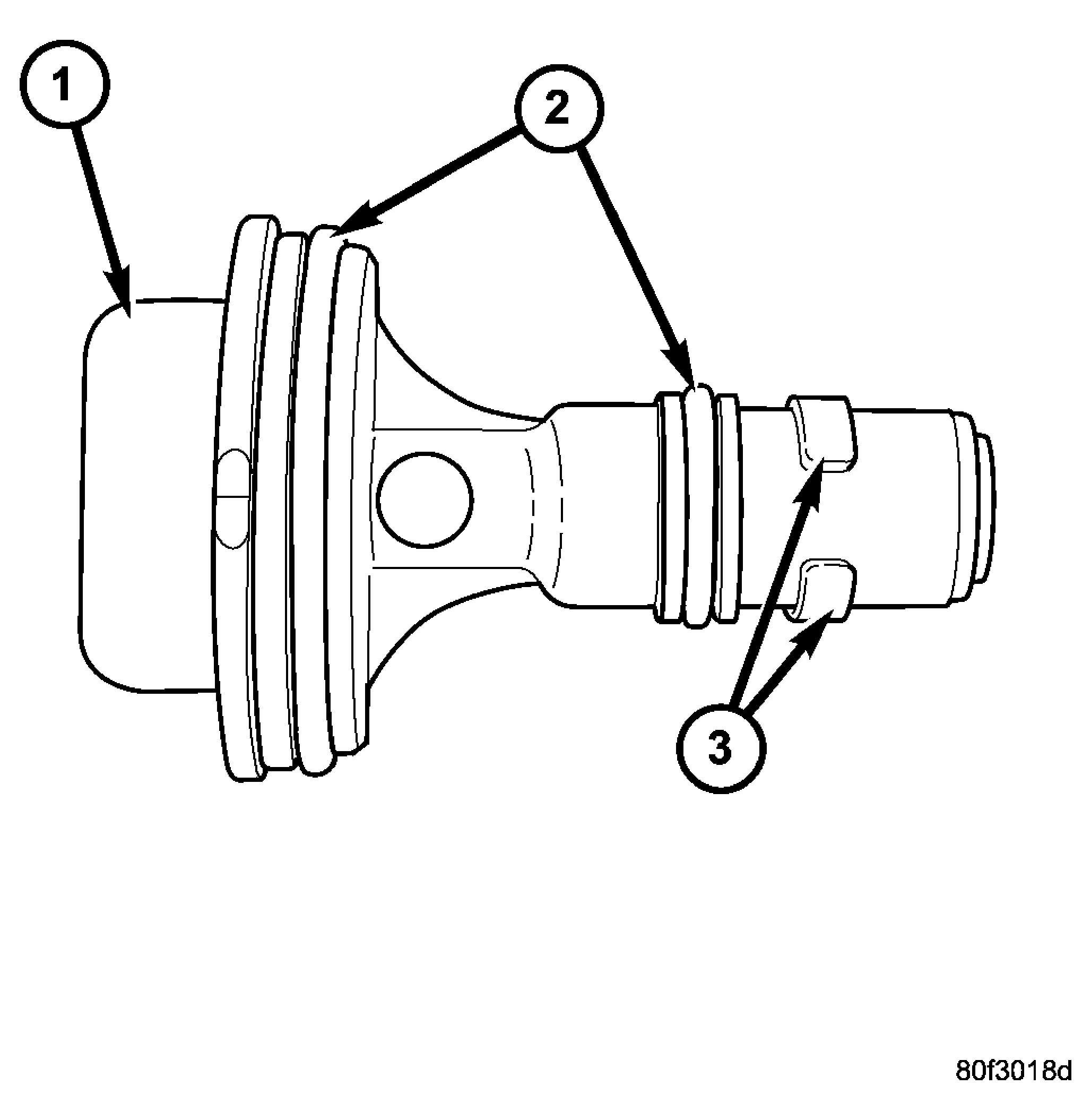

Fig 2: View Of PCV Valve - 5.7L

Courtesy of DAIMLERCHRYSLER CORP.

1. The PCV valve (1) is sealed to the intake manifold with two O-rings (2).
2. Remove PCV valve by rotating counter-clockwise 90 degrees until locating tabs (3) have been freed. After tabs have cleared, pull valve straight up from intake manifold.
3. After valve is removed, check condition of two valve O-rings (2).
