Ignition System (Service Information): Sensor-Knock: Removal: 6.1L

Fig 1: Locating Knock Sensor

Courtesy of DAIMLERCHRYSLER CORP.

Two knock sensors (1) are used. Each sensor is bolted to the outside of cylinder block below the exhaust manifold (3).

1. Raise vehicle.

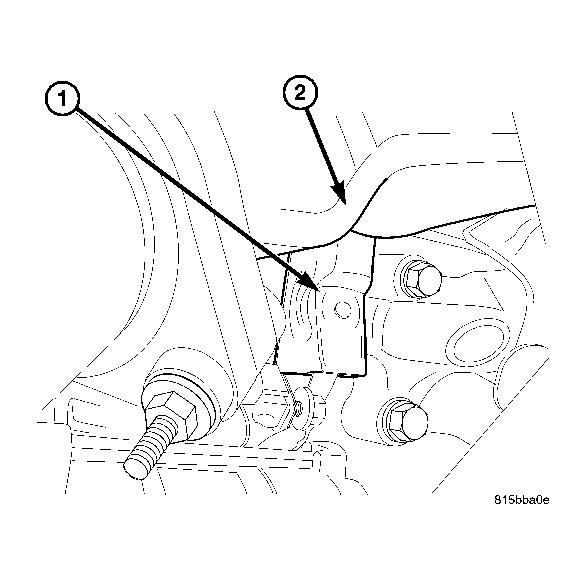

   Fig 2: Removing Heat Shield

   Courtesy of DAIMLERCHRYSLER CORP.
2. Remove heat shield (1) from knock sensor. Shield snaps to sensor.
   Fig 3: Locating Knock Sensor

   Courtesy of DAIMLERCHRYSLER CORP.
3. Disconnect knock sensor electrical connector (5).
4. Remove sensor mounting bolt (2). Note foam strip on bolt threads. This foam is used only to retain the bolts to sensors for plant assembly. It is not used as a sealant. Do not apply any adhesive, sealant or thread locking compound to these bolts.
5. Remove sensor from engine.
